Product Description:

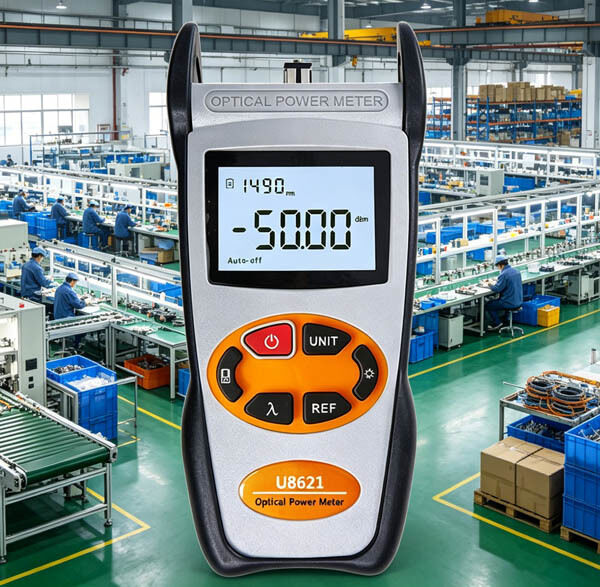

Designed as a portable optical power meter, this device combines functionality with user-friendly operation. Its intuitive interface allows both beginners and experienced professionals to quickly navigate through various settings and measurement modes. The tester supports a wide range of fiber optic cable types and wavelengths, making it versatile across different applications and network configurations. Whether used for installation verification, routine maintenance, or fault detection, this tester provides dependable and consistent results.

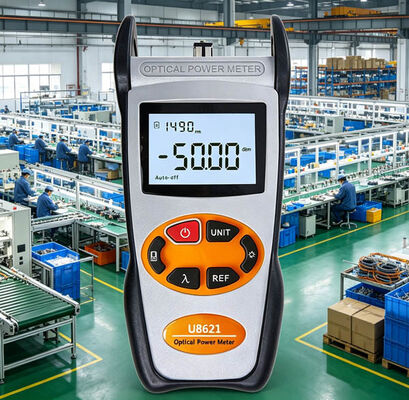

In summary, the Optic Fiber Tester is an outstanding lightweight optical power meter that offers a blend of portability, accuracy, and long-lasting performance. Its extended battery life of 200 hours powered by 3 AA batteries or a power adapter, combined with a compact size of 200×90×50 mm and a weight of just 285 grams, ensures unmatched convenience for users. The high-resolution display with 0.01 dB precision further enhances its capability as a professional optical power meter. Whether for installation, maintenance, or troubleshooting of fiber optic networks, this portable optical power meter is a dependable and efficient solution that meets the rigorous demands of modern fiber optic technology.
| Calibration Wavelength(nm) |
850/1300/1310/1490/1550/1625 |
| Detector type |
InGaAs |
| Measurement Range(dBm) |
Type A:-70～+6 |
Type C:-50～+26 |
| Uncertainty (dB) |
±0.15(3.5%) |
| Display resolution(dB) |
0.01 |
| Frequency ID(Hz) |
270,1K,2K |
| Date Storage Capacity |
1000 |
| Communication Port |
USB |
| Standard Connector |
FC/PC or FC,SC interchangeable |
| Alkaline battery |
3*AA,1.5V |
| Power Adapter(V) |
8.4 |
| Battery Operating time (h) |
200 without backlight |
| Operation Temperature(℃) |
-10～+60 |
| Storage Temperature(℃) |
-25～+70 |
| Dimension(mm) |
200*90*50 |
| Weight(g) |
285 |
Applications:
The YOUCii UC8621 Optic Fiber Tester is a highly reliable handheld optical power meter designed to meet the demands of various optical fiber testing scenarios. Manufactured in China, this advanced device boasts a detector area of 0.3mm, with an option for 1.0mm, allowing for precise and flexible measurements across different fiber types. Its impressive linearity of 0.03 dB and a display resolution of 0.01 dB ensure that technicians can obtain highly accurate readings, critical for maintaining optimal network performance.
In practical applications, the YOUCii UC8621 handheld optical power meter is indispensable for field technicians and engineers performing installation, maintenance, and troubleshooting of fiber optic networks. Whether working in telecommunications, data centers, or CATV systems, this optical power meter provides quick and precise power measurements within a wide wavelength range of 800 to 1700 nm. This broad spectrum compatibility makes it suitable for testing single-mode and multimode fibers, as well as various optical components such as splitters and connectors.
