Product Description:
The Optic Fiber Tester is a highly reliable and efficient device designed for professionals and technicians working with fiber optic networks. This advanced testing instrument is equipped with an InGaAs probe type, which ensures exceptional sensitivity and accuracy in measuring optical signals across a wide range of wavelengths. The InGaAs probe is particularly suited for testing fiber optic cables used in telecommunications, data centers, and various high-speed data transmission applications, making this tester an indispensable tool for maintaining and troubleshooting optical networks.
One of the standout features of this Optic Fiber Tester is its impressive battery life. Powered by 3 AA batteries and supplemented with a power adapter option, this device offers continuous operation for up to 200 hours. This extended battery life ensures that users can rely on the tester for prolonged fieldwork without the worry of frequent recharging or battery replacement. Whether you are performing routine maintenance checks or intensive network diagnostics, the long-lasting power supply guarantees uninterrupted performance.
In addition to its robust battery capabilities, the tester boasts a detector area of 0.3mm, with an optional 1.0mm detector area available to suit different testing requirements. The detector area plays a crucial role in the sensitivity and precision of the optical power measurements. With these options, users can select the most appropriate configuration to match their specific fiber optic testing scenarios, enhancing versatility and accuracy.
| Calibration Wavelength(nm) |
850/1300/1310/1490/1550/1625 |
| Detector type |
InGaAs |
| Measurement Range(dBm) |
Type A:-70～+6 |
Type C:-50～+26 |
| Uncertainty (dB) |
±0.15(3.5%) |
| Display resolution(dB) |
0.01 |
| Frequency ID(Hz) |
270,1K,2K |
| Date Storage Capacity |
1000 |
| Communication Port |
USB |
| Standard Connector |
FC/PC or FC,SC interchangeable |
| Alkaline battery |
3*AA,1.5V |
| Power Adapter(V) |
8.4 |
| Battery Operating time (h) |
200 without backlight |
| Operation Temperature(℃) |
-10～+60 |
| Storage Temperature(℃) |
-25～+70 |
| Dimension(mm) |
200*90*50 |
| Weight(g) |
285 |
Applications:

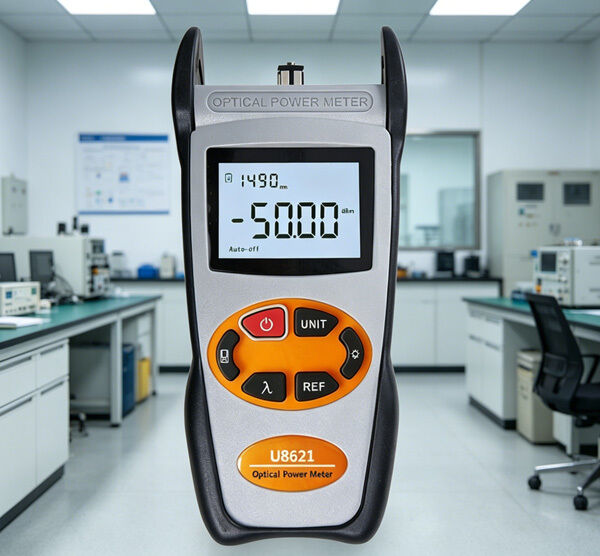

The YOUCii UC8621 Optic Fiber Tester is an essential tool designed for a wide range of application occasions and scenarios in the field of fiber optics. Originating from CHINA, this advanced optical power meter is perfectly suited for professionals and technicians who require accurate and reliable measurements in various environments. Whether you are working in telecommunications, data centers, or network maintenance, the UC8621 provides the precision and durability needed to ensure optimal fiber optic performance.
In addition to fieldwork, the YOUCii UC8621 optical power meter is valuable in laboratory settings where precise measurements are necessary for research and development of fiber optic components. Its reliable performance and user-friendly design help engineers and researchers obtain consistent data to improve fiber optic technology.
Overall, the YOUCii UC8621 optic fiber tester is a versatile and dependable optical power meter that excels in installation, maintenance, troubleshooting, and laboratory testing scenarios. Its combination of accuracy, portability, and extended battery life makes it an indispensable tool for anyone working with fiber optic networks.
