Product Details:
|
| Product Name: | Optical Laser Source Power Meter | Absolute Uncertainty (accuracy) At Reference Condition: | 1200nm To 1610nm |
|---|---|---|---|
| Power Sampling Period(rate): | 100 Us(10KHz) | Communication Interface: | RS232 / USB / RJ45 |
| Storage Temperature: | -30 ～ +80℃ | Weight: | 4.0 Kg |
| Highlight: | optical laser source power meter 1200nm,1610nm optical light source power meter,1610nm optical laser source power meter |
||

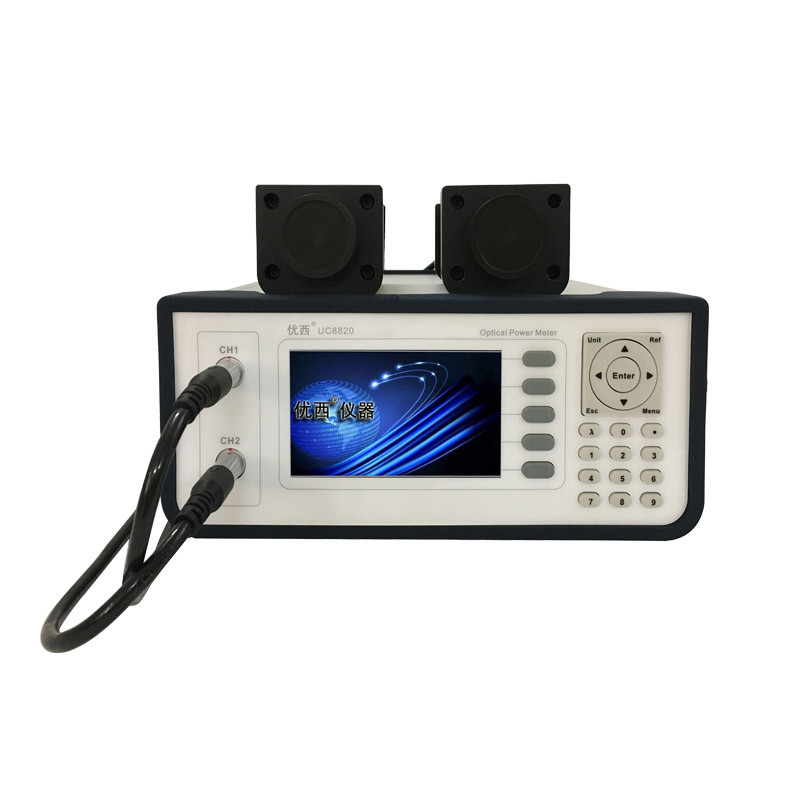

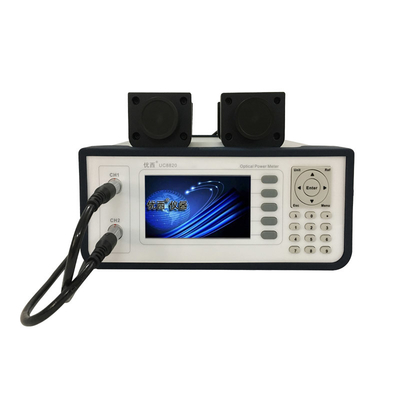

UC8820+2×UC8820x Double Channel Power Meter
| Model | UC8820 + 2xUC88201 | UC8820 + 2xUC88202 | UC8820 + 2xUC88203 |
| Sensor Element | InGaAs | ||
| Power Range | +5 ~ -85dBm | +15 ~ -75dBm | +25 ~ -65dBm |
| Wavelength Range | 850 ~ 1700 nm | ||
|
Power sampling period(rate) |
100 us(10KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | ||
|
Relative Uncertainty (accuracy) at reference condition |
0.02 dB Typical | ||
| Linearity (power) | ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | ||
| Resolution | 0.001dB | ||
| Return Loss | ＞ 40 dB | ||
| Communication Interface | RS232 / USB / RJ45 | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 Year | ||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | ||
| Weight | 4.0 kg | ||
UC8820+2×UC8820x optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
The UC8820+2×UC8820x optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter Probe options. Guangzhou UC also Provides up to 64 channel host systems.
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
