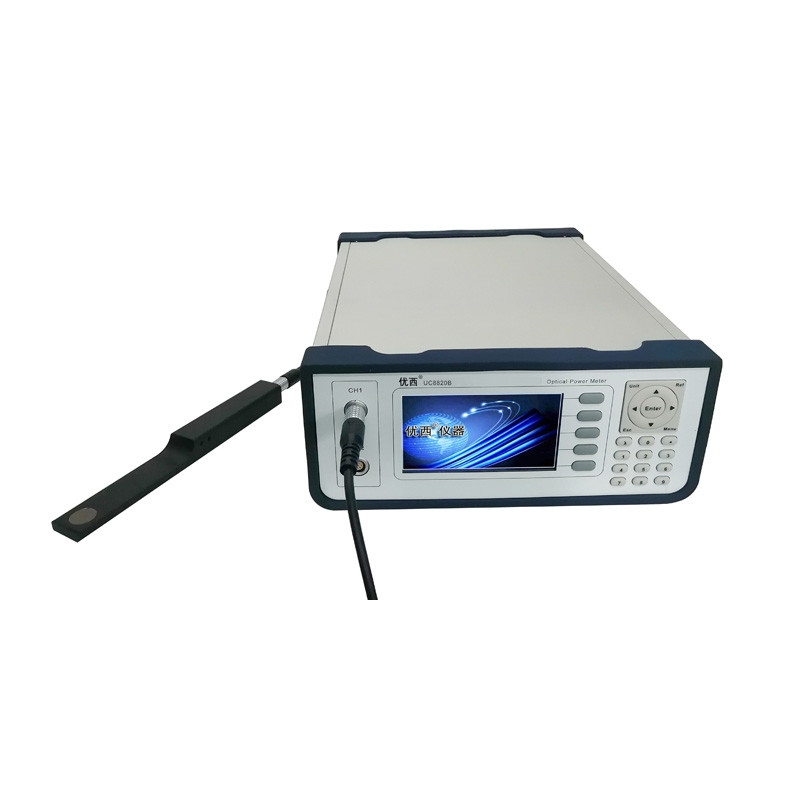

Single Channel Pen Probe Power Meter RS232 / RJ45 Communication Interface

Single Channel Pen Probe Power Meter RS232 / RJ45 Communication Interface
Single Channel Pen Probe Power Meter RS232 / RJ45 Communication Interface

Large Image :  Single Channel Pen Probe Power Meter RS232 / RJ45 Communication Interface

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8820B+UC88204
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20pcs+per month

Single Channel Pen Probe Power Meter RS232 / RJ45 Communication Interface

Description
Product Name: En Probe Power Meter PD Size: φ10 Mm φ12 Mm
Wavelength Range: 900 ~ 1700 Nm Power Range: +10 ~ -55 DBm
Relative Uncertainty (accuracy) At Reference Condition: 0.02 DB Typical Optical Input Interface: Bare Fiber Input
Highlight:

Pen Probe Power Meter RS232

,

power probe meter RJ45

,

Pen Probe Power Meter RJ45

UC8820B+UC88204-xx Pen Probe Power Meter



Model # UC8820B + UC88204-10 UC8820B+UC88204-12
Number of Channels Single Ch. (Dual Ch. optional)
Sensor Element InGaAs
PD Size φ10 mm φ12 mm
Wavelength Range 900 ~ 1700 nm
Calibration wavelength 980 / 1310 / 1490 / 1510~1640nm Continuous calibration
Power Range +10 ~ -55 dBm

Power sampling period(rate)

100 us(10KHz)
Application Fiber Type

Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

0.02 dB Typical
Linearity (power) ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss > 40 dB
Optical Input Interface Bare fiber input
Probe front dimension 22.0 mm W x 6.5 mm H x 60.0 mm D
Communication Interface USB / RS232 / RJ45 / BNC / SMA Trig
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 Year
Dimensions 245 mm W, 105 mm H, 320 mm D
重量 Weight 2.5 kg



UC8820B+UC88204 optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.

The UC8820B+UC88204 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter Probe options. Guangzhou UC also Provides up to 64 channel host systems.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
