2 / 4 / 8 Channel Optical Power Meter 850nm To 1700 nm

I'm Online Chat Now

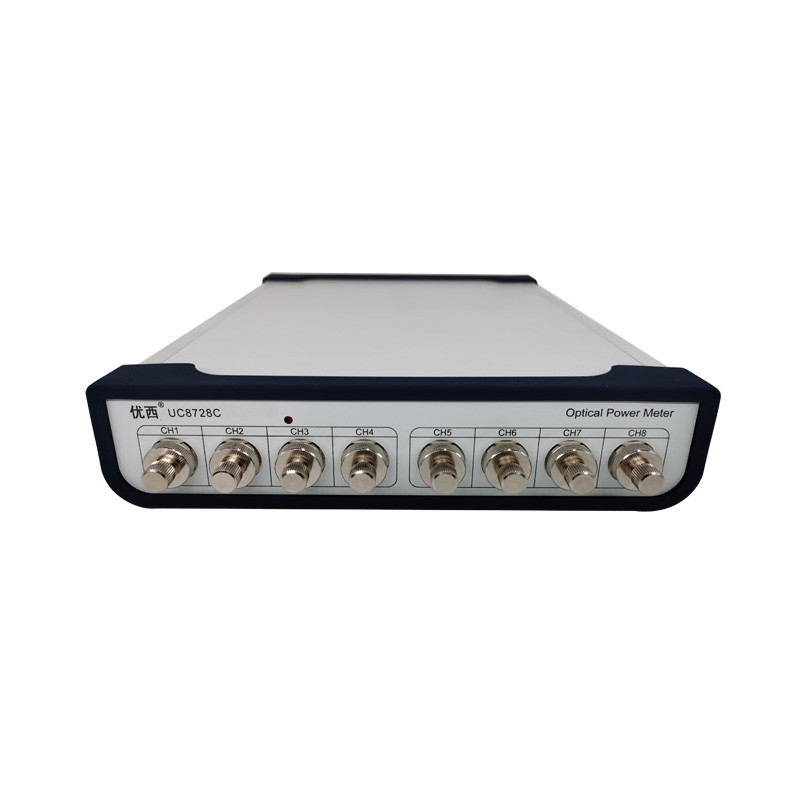

2 / 4 / 8 Channel Optical Power Meter 850nm To 1700 nm

2 / 4 / 8 Channel Optical Power Meter 850nm To 1700 nm
2 / 4 / 8 Channel Optical Power Meter 850nm To 1700 nm

Large Image :  2 / 4 / 8 Channel Optical Power Meter 850nm To 1700 nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8728
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30pcs+per month

2 / 4 / 8 Channel Optical Power Meter 850nm To 1700 nm

Description
Product Name: Optical Power Meter Number Of Channels: 2 / 4 / 8 Channel
Wavelength Range: 850 ~ 1700 Nm Power Range: +5 ~ -75dBm
Linearity (power): ± 0.06 DB (1200 Nm ~ 1610 Nm, 0 ~ -60dBm) Return Loss: >40 DB
Highlight:

Optical Power Meter 1700 nm

,

8 Channel optical power metre

,

Optical Power Meter 850nm

UC8722C/4C/8C 2/4/8 Channel Optical Power Meter



Model # UC8722C UC8724C UC8728C
Number of Channels 2 4 8
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Wavelength 850 / 980 / 1310 / 1490 / 1510~1625 nm
Power Range +5 ~ -75dBm
Sampling period 10 us (100KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) < 0.02 dB Typical
Linearity (power) ± 0.06 dB (1200 nm ~ 1610 nm, 0 ~ -60dBm)
Return Loss 40 dB
Communication Interface RS232, USB,RJ45 Control by PC
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 235 mm W, 55mm H, 320 mm D
Weight 3.0 kg





UC8722C/4C/8C 2/4/8 Channel optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.

UC8722C/4C/8C optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou UC can provide low power, high power 4 channel and 8 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
