Product Details:
|
| Product Name: | Optical Power Meter | Number Of Channels: | 8, 12, 16 |
|---|---|---|---|
| Sensor Element: | InGaAs | Wavelength Range: | 850 ~ 1700 Nm |
| Calibration Wavelength: | 850/1310/1490/1550/1610 | Sampling Period: | 1ms (1KHz) |
| Highlight: | 12 16 Channel usb optical power meter,optical test equipment 1610nm,optical power meter 1550nm |
||

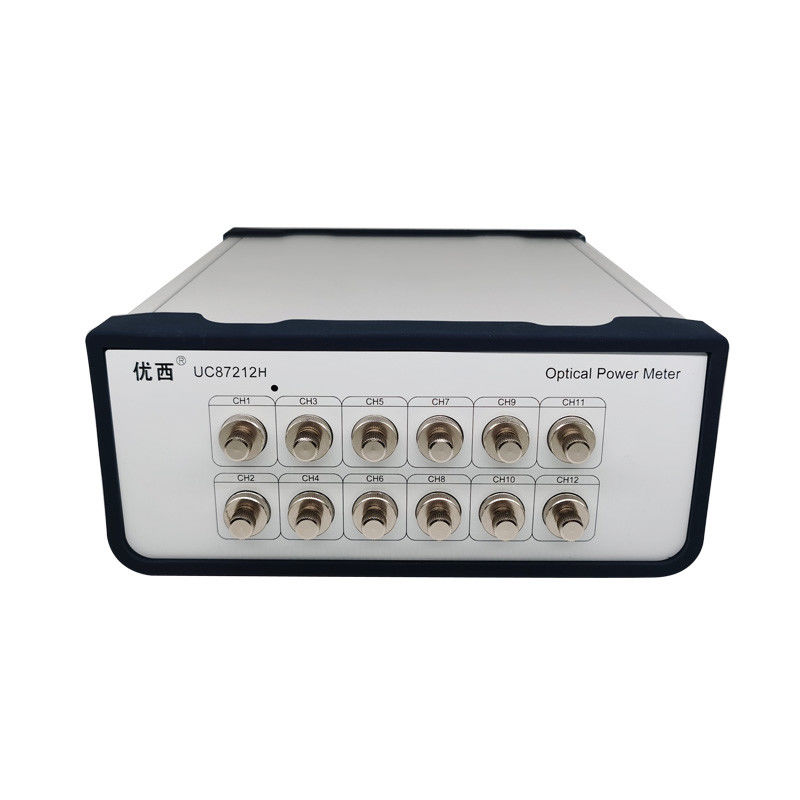

UC872xxH Multi-Channel Quick Sampling Optical Power Meter
| Model # | UC87208H | UC87212H | UC87216H |
| Number of channels | 8 | 12 | 16 |
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/1310/1490/1550/1610 | ||
| Power Range | +23~ -50 dBm | ||
| Sampling period | 1ms (1KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞50 dB | ||
| Communication Interface | RS232, USB,RJ45 , SMA Trig. | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235Wx55Hx320D | 245Wx105Hx320D mm | |
| Weight | 2.0 Kg | 3.0 kg | |
UC872xxH Multi Channel optical power meters offer superior performance for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
UC872xxH Multi-Channel optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou UC can provide low power, high power 8/12/16 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
