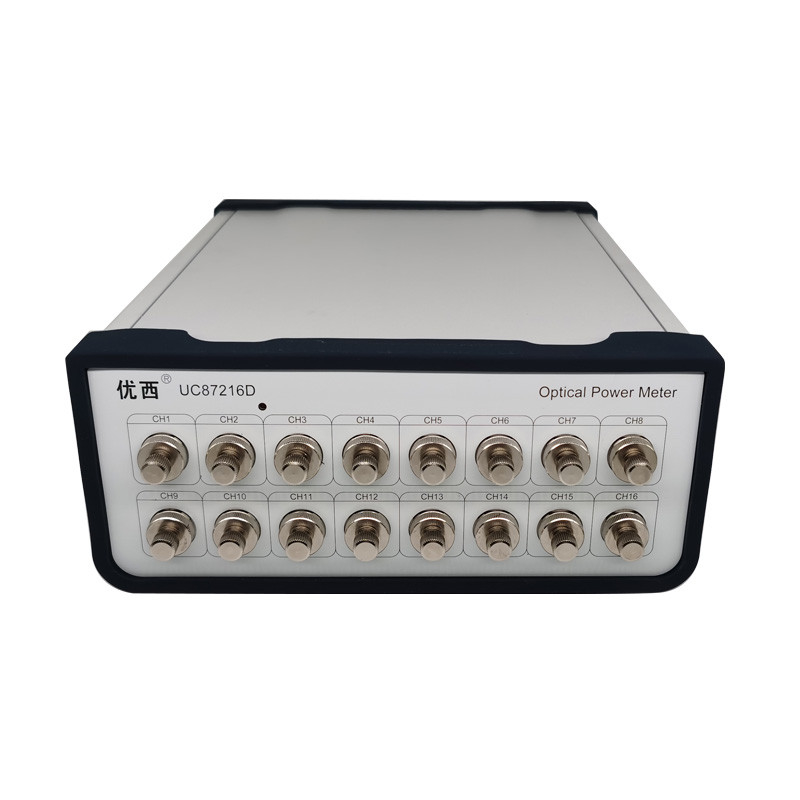

Multi-Ch Fiber Optical Power Meter With Laser Source

I'm Online Chat Now

Multi-Ch Fiber Optical Power Meter With Laser Source

Multi-Ch Fiber Optical Power Meter With Laser Source
Multi-Ch Fiber Optical Power Meter With Laser Source

Large Image :  Multi-Ch Fiber Optical Power Meter With Laser Source

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC87216D
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20pcs+per month

Multi-Ch Fiber Optical Power Meter With Laser Source

Description
Product Name: Multi-Ch Fiber Optical Power Meter Calibration Wavelength: 850/1310/1490/1510 ~1625 Nm
Power Range: +7~ -73 DBm Application Fiber Type: Standard SM And MM Up To 62.5 Um Core Size
Uncertainty (accuracy): ± 4% (1200 Nm ~ 1610 Nm) Relative Uncertainty: < 0.02 DB Typical
Highlight:

Multi-Ch Optical Power Meter

,

1625 nm power optical meter

,

16 channel Optical Power Meter

UC872xxD Multi-Ch High Precision Optical Power Meter



Model # UC87208D UC87212D UC87216D
Number of channels 8 12 16
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850/1310/1490/1510 ~1625 nm Continuous calibration
Power Range +7~ -73 dBm
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty < 0.02 dB Typical
Linearity (power)  ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss 50 dB
Communication Interface RS232, USB,RJ45 , SMA Trig.
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 235Wx55Hx320D 245Wx105Hx320D mm
Weight 2.0 Kg 3.0 kg





UC872xxD Multi Channel optical power meters offer superior performance for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
UC872xxD Multi-Channel optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou UC can provide low power, high power 8/12/16 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
