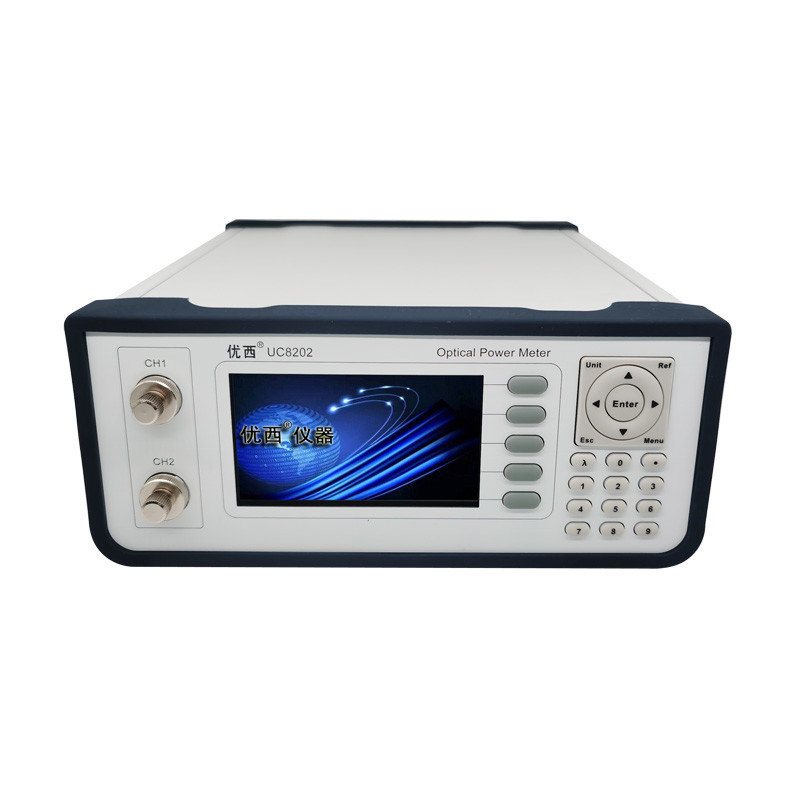

2 Channel 4 Channel Light Source Power Meter 850nm 980nm 1310nm

2 Channel 4 Channel Light Source Power Meter 850nm 980nm 1310nm
2 Channel 4 Channel Light Source Power Meter 850nm 980nm 1310nm

Large Image :  2 Channel 4 Channel Light Source Power Meter 850nm 980nm 1310nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8202
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50pcs+per month

2 Channel 4 Channel Light Source Power Meter 850nm 980nm 1310nm

Description
Product Name: Light Source Power Meter Calibration Wavelength: 850nm 980nm 1310nm
Power Range: +10 ~ -65dBm Linearity (power): ≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -50dBm)
Fiber Type: Standard SM And MM Up To 62.5 Um Core Size Operation Temperature: 0 ~ +40℃
Highlight:

4 Channel light source power meter

,

850nm optical laser source power meter

,

2 Channel light source power meter

UC8202/4 2/4 Channel Power Meter



Model # UC8201 UC8202 UC8204 UC820XH
Number of Channels 1 2 4 X
Power Range +10 ~ -65dBm +25 ~ -50dBm
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850/980/1310/1490/1550/1610 nm
Application Fiber Type Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

< 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss > 40 dB
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0 kg





UC8202/4 2/4channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
UC8202/4 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
