Product Details:
|
Product Name: | PD External Optical Power Meter | PD Size: | φ2 Mm |
---|---|---|---|
Wavelength Range: | 900 ~ 1700 Nm | Calibration Wavelength: | 1310 / 1550 / 1650nm Sectional Calibration |
Power Range: | +10 ~ - 45 DBm | Power Sampling Period(rate): | 1 Ms(1KHz) |
Relative Uncertainty (accuracy) At Reference Condition: | 0.02 DB Typical | Communication Interface: | RS232 / USB |
Highlight: | PD External Optical Power Meter,1550nm fiber optic light meter,1310nm Optical Power Meter |

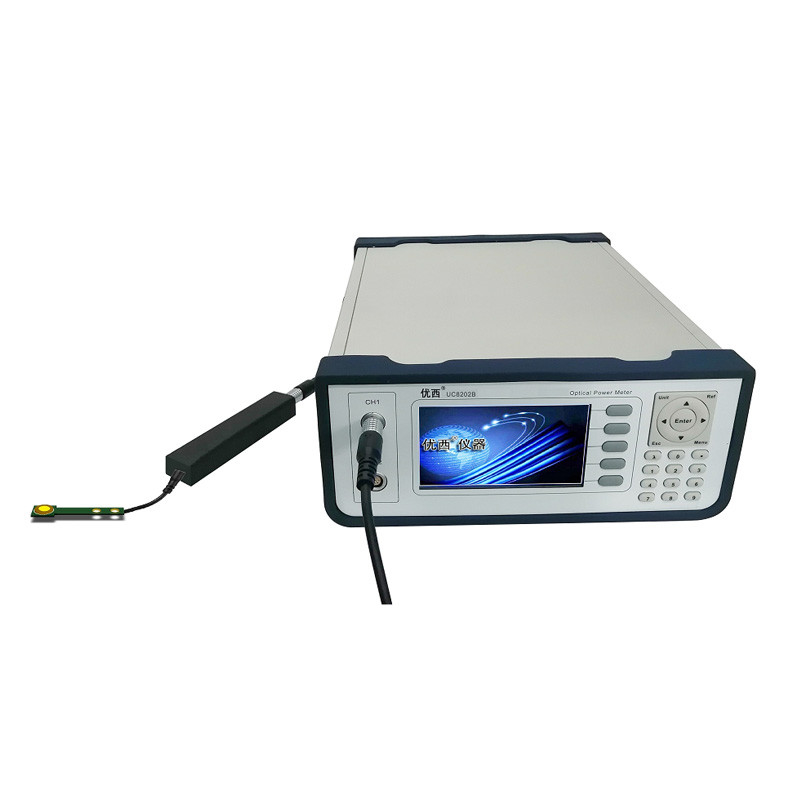

UC8202B+UC82024 Ultrathin PD External Optical power meter
Model # | UC8202B + UC82024 |
Number of Channels | Dual Ch. (Single Ch. Optional ) |
Sensor Element | InGaAs |
PD Size | φ2 mm |
Wavelength Range | 900 ~ 1700 nm |
Calibration wavelength | 1310 / 1550 / 1650nm Sectional calibration |
Power Range | +10 ~ - 45 dBm |
Power sampling period(rate) |
1 ms(1KHz) |
Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1650 nm) |
Relative Uncertainty (accuracy) at reference condition |
0.02 dB Typical |
Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1650 nm, 0 ~ -40dBm) |
Return Loss | > 40 dB |
Optical Input Interface | Bare fiber input |
Probe front dimension | 5.0 mm W x 2.5 mm H x 20.0 mm D |
Communication Interface | RS232 / USB |
Operation Temperature | 0 ~ +40℃ |
Storage Temperature | -30 ~ +80℃ |
Recalibration Period | 2 Year |
Dimensions | 245 mm W, 105 mm H, 320 mm D |
Weight | 2.5 kg |
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
