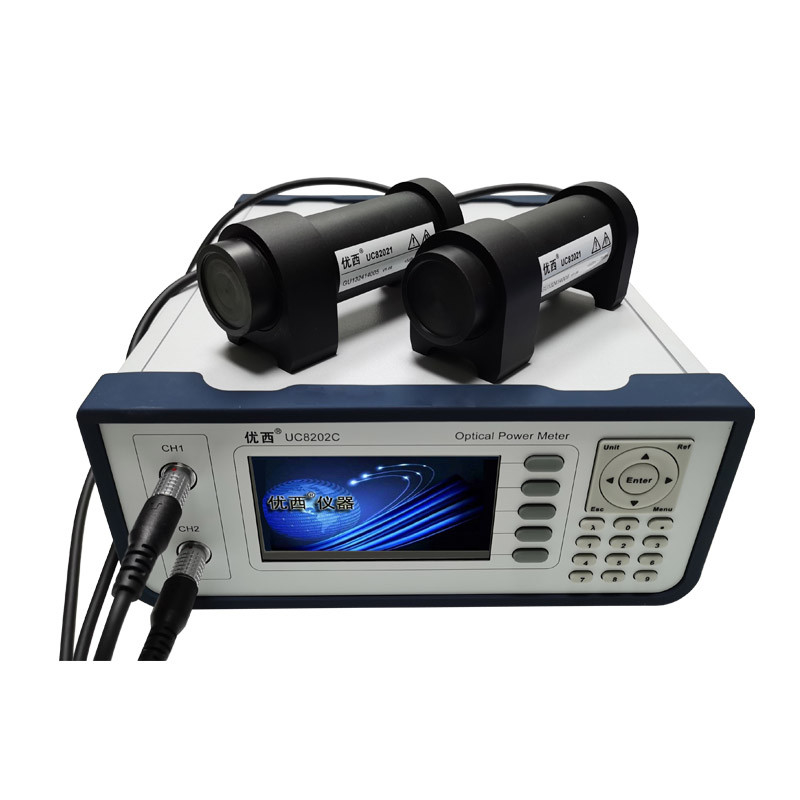

Double Channel Light Source Power Meter RS232 Communication Interface

I'm Online Chat Now

Double Channel Light Source Power Meter RS232 Communication Interface

Double Channel Light Source Power Meter RS232 Communication Interface
Double Channel Light Source Power Meter RS232 Communication Interface

Large Image :  Double Channel Light Source Power Meter RS232 Communication Interface

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8202C+2×UC82021
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15pcs+per month

Double Channel Light Source Power Meter RS232 Communication Interface

Description
Product Name: Light Source Power Meter Number Of Channels: 2
Power Sampling Period(rate): 100 Us(10KHz) Communication Interface: RS232, USB,Control By PC (RJ45 Option)
Recalibration Period: 2 Year Return Loss: > 40 DB
Highlight:

Double Channel light source power meter

,

850nm fiber power meter and light source

,

light source power meter RS232

UC8202C+2×UC82021 Double Channel Power Meter



Model # UC8202C + UC82021 UC202C + 2xUC82021 UC202C+ UC82023 UC8202C + 2xUC82023
Number of Channels 1 2 1 2
Power Range +10 ~ -65dBm +25 ~ -50dBm
Wavelength Range 850 ~ 1700 nm

Power sampling period(rate)

100 us(10KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

<0.02 dB Typical
Linearity (power) ≤± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss > 40 dB
Communication Interface RS232, USB,Control by PC (RJ45 option)
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 Year
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 3.5 kg



UC8202C+2×UC82021 Optical power meter is widely used in optical communication passive general fiber optical measurement and application, superior performance, economical and practical.

The UC8202C+2×UC82021 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter Probe options. Guangzhou UC also Provides up to 64 channel host systems.

FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
