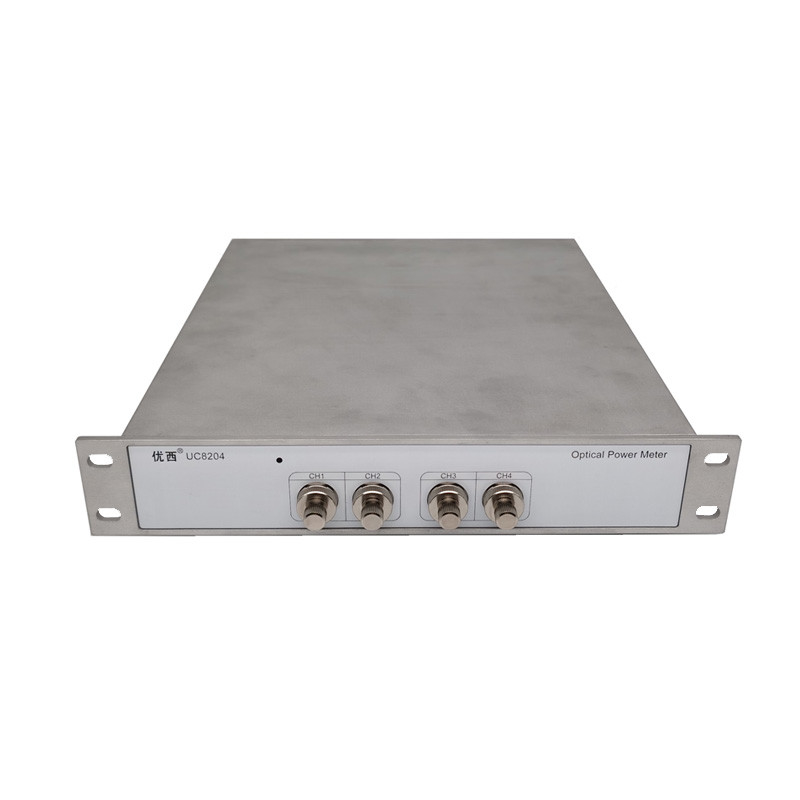

4 Channel Laser Source Power Meter SM MM Fiber 62.5 um

I'm Online Chat Now

4 Channel Laser Source Power Meter SM MM Fiber 62.5 um

4 Channel Laser Source Power Meter SM MM Fiber 62.5 um
4 Channel Laser Source Power Meter SM MM Fiber 62.5 um

Large Image :  4 Channel Laser Source Power Meter SM MM Fiber 62.5 um

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8204
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30pcs+per month

4 Channel Laser Source Power Meter SM MM Fiber 62.5 um

Description
Product Name: Laser Source Power Meter Channels: 4 Channel
Wavelength Range: 850 ~ 1700 Nm Calibration Wavelength: 850/980/1310/1490/1550/1610 Nm
Communication Interface: RS232, USB,Control By PC Dimensions: 292 Mm W, 50mm H, 310 Mm D
Highlight:

laser source power meter 62.5 um

,

4 Channel light source power meter

,

laser source power meter SM MM Fiber

UC8204 4 Channel Power Meter



Model # UC8204
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850/980/1310/1490/1550/1610 nm
Power Range +5~ -65dBm
Sampling period 1ms (1KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) < 0.02 dB Typical
Linearity (power)  ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss 40 dB
Communication Interface RS232, USB,Control by PC
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 292 mm W, 50mm H, 310 mm D
Weight 3.0 kg





UC8204 4Channel optical power meters offer superior performance for general purpose of fiber optical test and measurement applications. It is specifically designed for Economic and practical.
UC8204 Optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou UC can provide low power, high power 4 channel and 8 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.



Optical power meters are used to measure absolute optical power or the relative loss of optical power through a section of optical fiber. It is the most basic fiber optic device, much like a multimeter in electronics. In optical fiber measurement, optical power meter is a common heavy load meter. By measuring the absolute power of the transmitter or optical network, an optical power meter can judge the performance of the optical device.





FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
