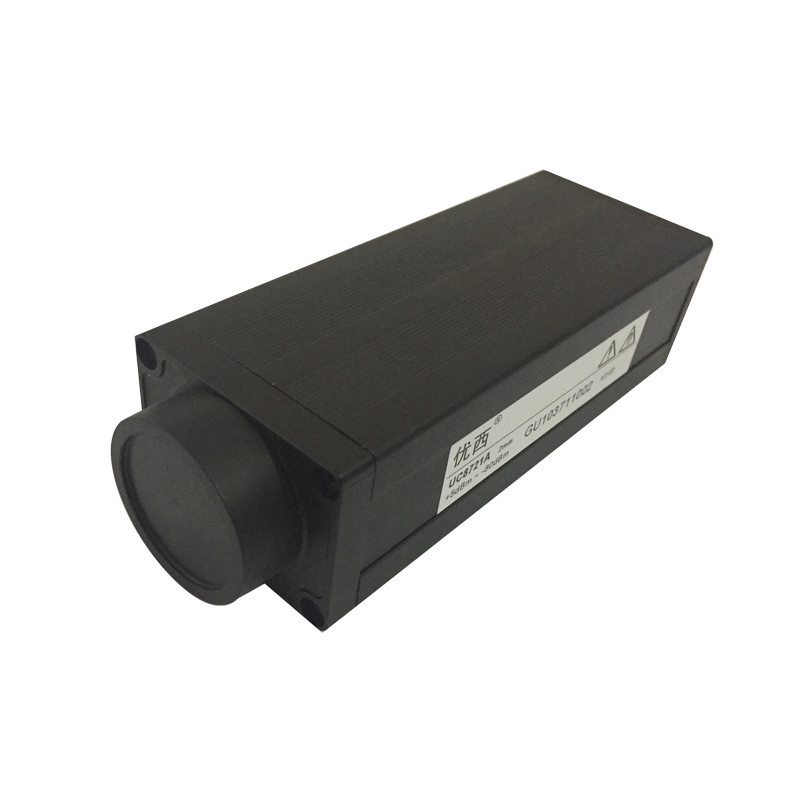

USB Communication Interface Optical Power Meter 850nm To 1700nm

I'm Online Chat Now

USB Communication Interface Optical Power Meter 850nm To 1700nm

USB Communication Interface Optical Power Meter 850nm To 1700nm
USB Communication Interface Optical Power Meter 850nm To 1700nm

Large Image :  USB Communication Interface Optical Power Meter 850nm To 1700nm

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Certification: CU,IOS
Model Number: UC8721A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50pcs+per month

USB Communication Interface Optical Power Meter 850nm To 1700nm

Description
Product Name: Optical Power Meter Power Range (dBm): + 5 ~ -65
Wavelength Range: 850 ~ 1700 Nm Sensor Element: InGaAs
Application Fiber Type: Standard SM And MM Communication Interface: USB
Highlight:

Optical Power Meter 850nm

,

optical power fiber meter 1700nm

,

Optical Power Meter 1700nm

UC8721A High speed optical power meter



Model #

UC8721A UC8721B UC8721C UC8721D UC8721H
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration wavelength 850 / 980 / 1310 / 1510~1640nm Continuous calibration
Power Range (dBm) + 5 ~ -65 + 5 ~ -70 + 5 ~ -80 + 25 ~ -60

Power sampling period(Rate)

100 us(10KHz) 10 us(100KHz)
Application Fiber Type Standard SM and MM
optical Input Interface Supporting bare fiber joint or FC/LC/SC Adapter

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

< 0.02 dB Typical values
Linearity (power) ± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm)
Return Loss 40 dB
Communication Interface USB +Trig +Trig +BNC +Trig
calibration period 2 years
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 52mm H,60 mm W,150 mm D
Weight 1.0 kg



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
