                        Product Details:


 |
| Product Name: | Optical Power Meter | Fiber Type: | SM MM Fiber |
|---|---|---|---|
| Wavelength Range: | 850 ~ 1700 Nm | Calibration Wavelength: | 850 / 980 / 1310 / 1510~1640nm Continuous Calibration |
| Optical Input Interface: | Supporting Bare Fiber Joint Or FC/LC/SC Adapter | Return Loss: | >40 DB |
| Highlight: | SM MM Fiber Optical Power Meter,fiber optic meter 1700nm,Optical Power Meter 850nm | ||

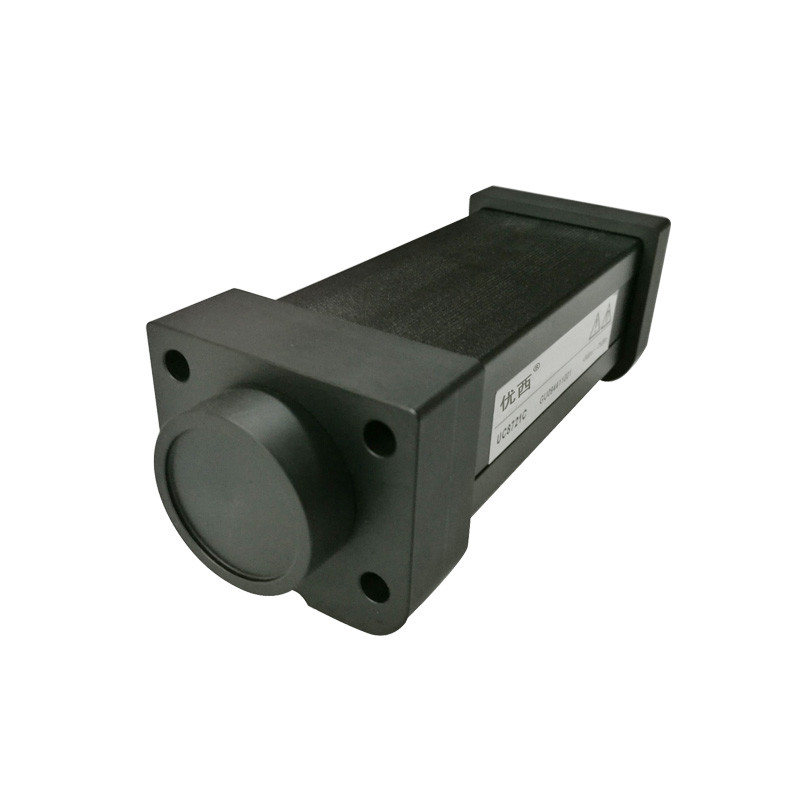

U8721C/D/H High speed optical power meter
| Model # | U8721A | U8721B | U8721C | U8721D | U8721H |
| Sensor Element | InGaAs | ||||
| Wavelength Range | 850 ~ 1700 nm | ||||
| Calibration wavelength | 850 / 980 / 1310 / 1510~1640nm Continuous calibration | ||||
| Power Range (dBm) | + 5 ~ -65 | + 5 ~ -70 | + 5 ~ -80 | + 25 ~ -60 | |
| Power sampling period(Rate) | 100 us(10KHz) | 10 us(100KHz) | |||
| Application Fiber Type | Standard SM and MM | ||||
| optical Input Interface | Supporting bare fiber joint or FC/LC/SC Adapter | ||||
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) | ||||
| Relative Uncertainty (accuracy) at reference condition | < 0.02 dB Typical values | ||||
| Linearity (power) | ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm) | ||||
| Return Loss | >40 dB | ||||
| Communication Interface | USB | +Trig | +Trig +BNC | +Trig | |
| calibration period | 2 years | ||||
| Operation Temperature | 0 ~ +40℃ | ||||
| Storage Temperature | -30 ~ +80℃ | ||||
| Dimensions | 52mm H,60 mm W,150 mm D | ||||
| Weight | 1.0 kg | ||||
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
