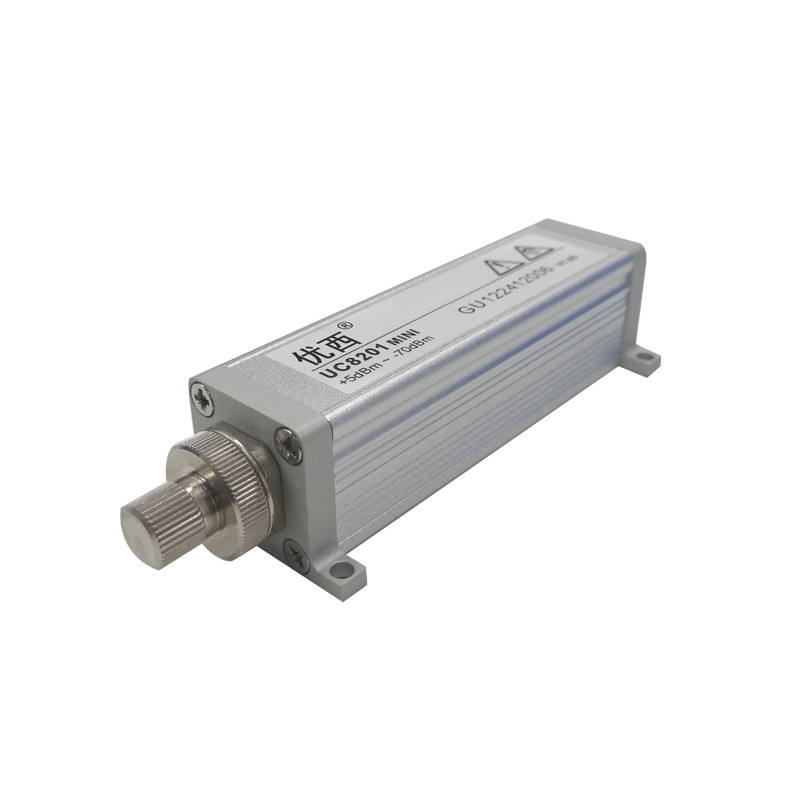

Single Channel Optical Test Equipment Miniature Modular Power Meter

Single Channel Optical Test Equipment Miniature Modular Power Meter
Single Channel Optical Test Equipment Miniature Modular Power Meter

Large Image :  Single Channel Optical Test Equipment Miniature Modular Power Meter

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Model Number: U8201MINI
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30pcs+per month

Single Channel Optical Test Equipment Miniature Modular Power Meter

Description
Number Of Channels: 1 Power Range: +5~ -70 DBm
Wavelength Range: 850 ~ 1700 Nm Power Sampling Period(rate): 100 Us(10KHz)
Calibration Wavelength: 850/980/1310/1490/1550/1610 Nm Application Fiber Type: Standard SM And MM Up To 62.5 Um Core Size
Linearity (power): ≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -50dBm) Return Loss: > 40 DB
Highlight:

Single Channel optical test equipment

,

Miniature Modular Power Meter 850nm

,

optical test equipment 1610 nm

U8201MINI Single Channel Power Meter Miniature Modular Power Meter High Precision





Model # U8201MINI
Number of Channels 1
Power Range +5 ~ -70dBm
Wavelength Range 850 ~ 1700 nm

Power sampling period(rate)

100 us(10KHz)
Calibration Wavelength 850/980/1310/1490/1550/1610 nm
Application Fiber Type Standard SM and MM up to 62.5 um core size

Absolute

Uncertainty (accuracy) at reference condition

± 4% (1200 nm ~ 1610 nm)

Relative

Uncertainty (accuracy) at reference condition

< 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss > 40 dB
Communication Interface RS232
Sampling Data Storage Support online continuous 2-hour data collection and saving, and draw power curves
Power Supply DC5V3A,100~240V AC Power adapter
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Recalibration Period 2 years
Dimensions 110 mm W, 25mm H, 37 mm D
Weight 0.25 kg





U8201MINI Single channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
U8201M Mini optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.



FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
