Single Channel Optical Power Meter Display With Screen 1610nm

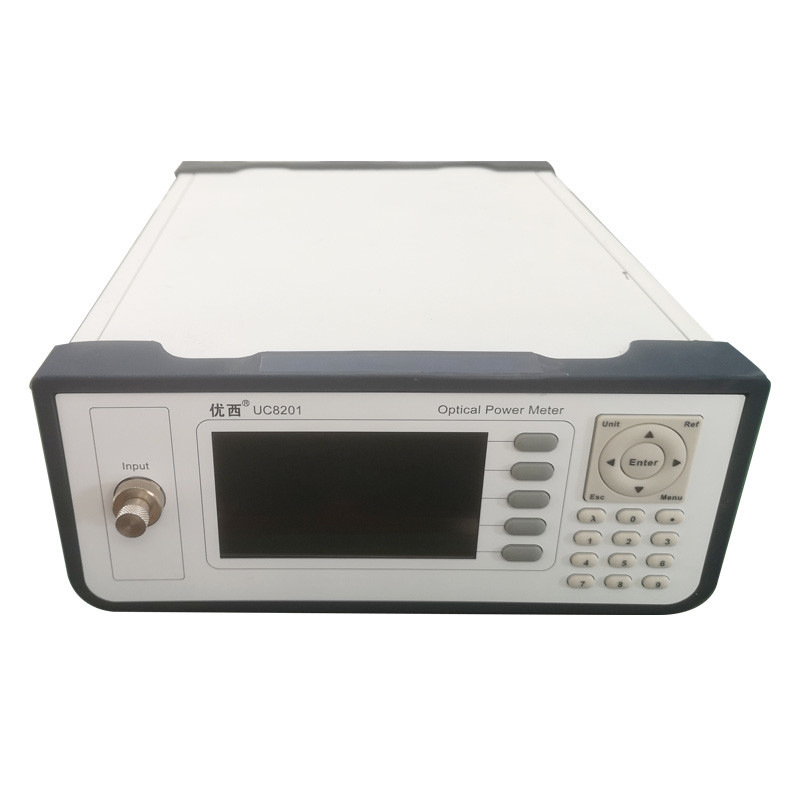

Large Image : Single Channel Optical Power Meter Display With Screen 1610nm

Product Details:

Place of Origin:	CHINA
Brand Name:	UC
Model Number:	UC8201

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	25pcs+per month

Contact Now

Single Channel Optical Power Meter Display With Screen 1610nm

Description

Weight:	2KG	Dimensions:	235 Mm W, 55 Mm H, 320 Mm D
Recalibration Period:	2 Years	Return Loss:	＞ 40 DB
Linearity (power):	≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -50dBm)	Application Fiber Type:	Standard SM And MM Up To 62.5 Um Core Size
Number Of Channels:	1
Highlight:	Single Channel Optical Power Meter , 1610nm Optical Power Meter

Single-Channel Optical Power Meter Display With Screen High Cost Performance

Model #	UC8201
Number of Channels	1
Power Range	+10 ~ -65dBm	+25 ~ -50dBm
Wavelength Range	850 ~ 1700 nm
Calibration Wavelength	850/980/1310/1490/1550/1610 nm
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	2.0 kg

UC8201 CHANNEL OPTICAL POWER METER HAS EXCELLENT performance, economical and practical, widely applicable to fiber testing and measurement applications, is designed for large volume production lines.

The UC8201 optical power meter test system is characterized by high efficiency, small size, fast start-up speed, and economic benefits. It can provide low power, high power, single channel and double channel optical power meter options.
