UC8721 USB Optical Power Meter Module

Product introduction

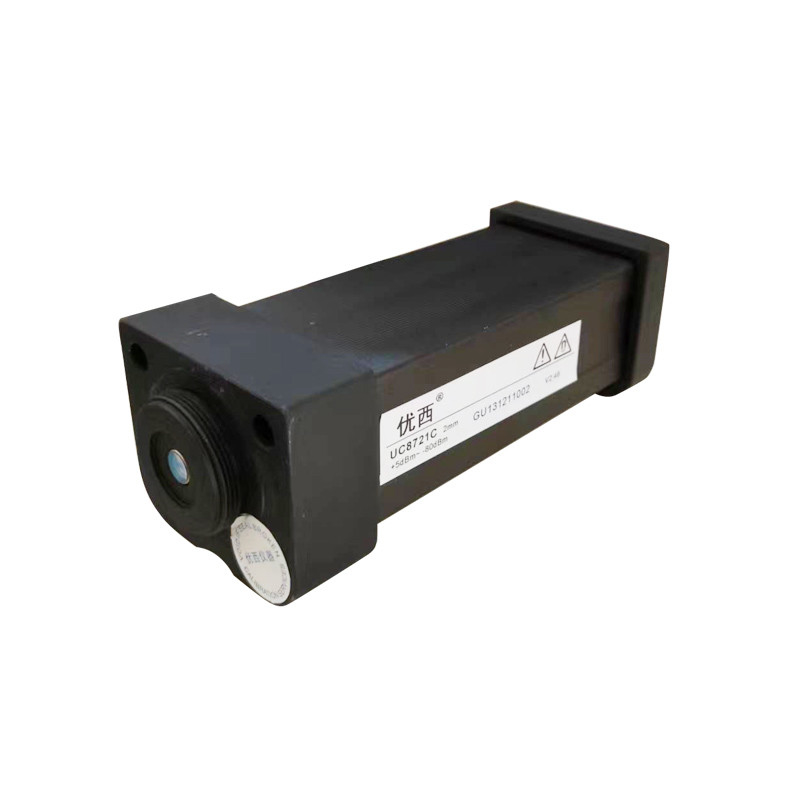

   UC8721 is a USB interface optical power meter module. It’s sampling period achieves microsecond, and can collects and processes data at a high rate of speed.

   The UC8721 optical power meter module provides a USB communication port connected with the PC. The operator uses its Demo program to control the UC8721, views the measurement values and sets the parameters. The UC8721 optical power mete module offers superior performance in testing DWDM Components, AWG&PLC components, optical amplifiers, and performing other general-purpose fiber optical test and measurement applications. Compared with other UC Instruments power meter modules, UC8721 features high speed sampling and compact dimension and It is especially suitable for the optical power meter sampling system which is assembled into various forms and multiple channels.

Software should be used

   The UC8721 optical power meter module can communicate with a PC through its built-in USB communication cable. The UC8721 optical power meter module can use the application software provided by Guangzhou Youxi to set module parameters and perform all application operations.

Describe with a door interface

USB to 1B4 core shielded cable

   The communication port is connected to the USB to 1B4 core shielding cable, which can be directly connected to the PC to establish communication.

Synchronous input port

   The synchronous signal input port, using SMA connector, receives the pulse trigger signal from the outside, the rising edge is effective.

Optical input interface

   Laser signal input port.When an optical fiber jumper is connected to an optical power meter module, a connection adapter is required in the middle.The connection adapter must match the type of the power meter connector and the fiber connector.

   The following figure lists two typical connection adapters for connecting optical fibers to the UC8721 optical power meter for reference.
