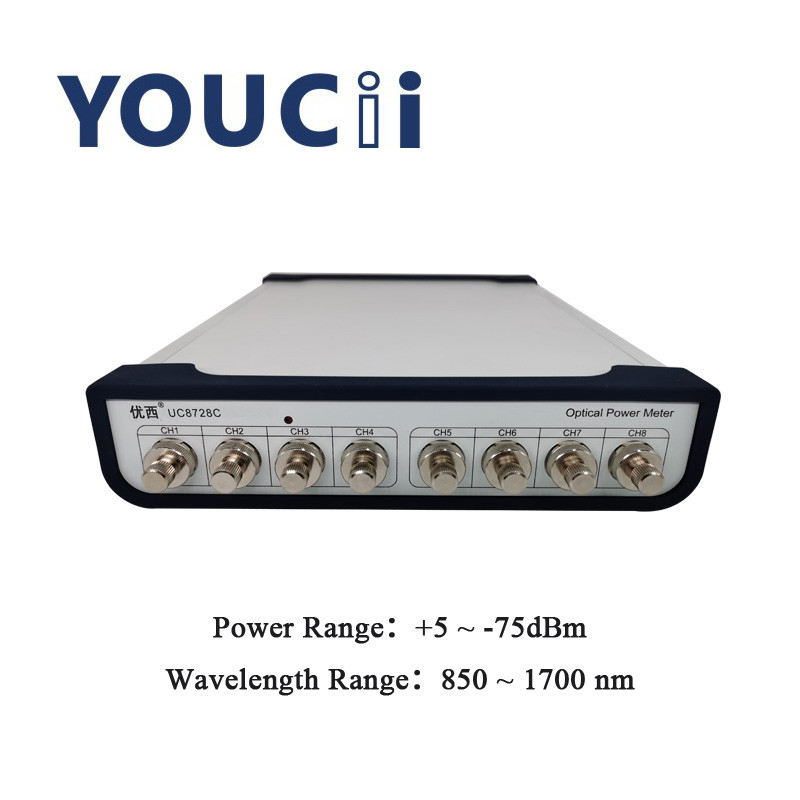

8 Channel Optical Power Meter Wavelength Range 850nm To 1700nm
| Model # |
UC8722C |
UC8724C |
UC8728C |
| Number of Channels |
2 |
4 |
8 |
| Sensor Element |
InGaAs |
| Wavelength Range |
850 ~ 1700 nm |
| Wavelength |
850 / 980 / 1310 / 1490 / 1510~1625 nm |
| Power Range |
+5 ~ -75dBm |
| Sampling period |
10 us (100KHz) |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
| Uncertainty (accuracy) |
± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) |
＜ 0.02 dB Typical |
| Linearity (power) |
± 0.06 dB (1200 nm ~ 1610 nm, 0 ~ -60dBm) |
| Return Loss |
＞40 dB |
| Communication Interface |
RS232, USB,RJ45 Control by PC |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
235 mm W, 55mm H, 320 mm D |
| Weight |
3.0 kg |
UC8722C/4C/8C 2/4/8 Channel optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
UC8722C/4C/8C optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou UC can provide low power, high power 4 channel and 8 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.
Ac Power Supply Requirements
The instrument complies with overvoltage class II regulations. The operating voltage is 100 ~240V AC voltage, frequency range 48-66Hz, operating voltage 115V When, the maximum consumption current is 230mA; Operating voltage 230V, the most
The maximum consumption current is 120mA.
The power cord
According to international safety standards, the instrument is equipped with a 3-core power cord that meets national standards. Only connect the power cord Plug into a power outlet with ground protection.
Power indicator
The power indicator lights up when the instrument is powered on.
Communication Interface Description
There are two communication ports on the back panel of the instrument, namely USB interface and RS232 interface.
The USB interface
USB interface is a standard 4-core B-type interface, which can be connected to the instrument and PC, and the instrument can be controlled by monitoring software.
FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.
