Product Details:
|
| Detector Type: | InGaAs | Calibrate Wavelength: | 850nm ~ 1700nm |
|---|---|---|---|
| Repeatability: | ±0.05 DB | Maximum Input Power: | +5 DBm |
| Calibration Period: | 2 Years | Storage Temperature: | Storage Temperature |
| Highlight: | 2 Channel Optic Power Meter,Optic Power Meter 1700Nm |
||
1/2 Channel Optic Power Meter 850 ~ 1700 nm Fiberoptic Equip
Specification
| Model | U8201 | U8202 |
| Function | Single channel optical power meter module | Dual channel optical power meter module |
| Detector type | InGaAs | |
| Calibrate wavelength/operating wavelength range | 850nm ~ 1700nm | |
| Power measuring range | +5 ~ -65 dBm | |
|
Power sampling period |
≥1ms | |
|
Optical fiber type |
Standard single mode and multimode fiber |
|
|
Absolute accuracy |
± 4% (1200 nm ~ 1610 nm) | |
|
Relative accuracy |
< 0.02 dB Typical value | |
|
repeatability |
±0.05 dB | |
|
Power linearity |
≤ +/- 0.02 dB (1200 nm ~ 1610 nm, + 0~ -60 dBm) | |
|
Return loss |
> 40 dB | |
|
Maximum input power |
+5 dBm | |
|
Calibration period |
two years | |
|
Operating temperature |
0 ~ +40℃ | |
|
Storage temperature |
-30 ~ +80℃ | |
|
Power s |
5 V 2A | |

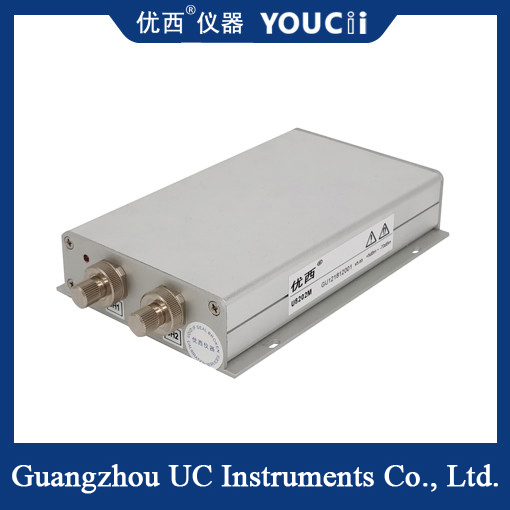

U8202M Double channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.
U8202M Mini optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
