2/4/6/8/12/16 Multi - Channel Optional Power Meter ± 0.06 DB 850nm Wavelength

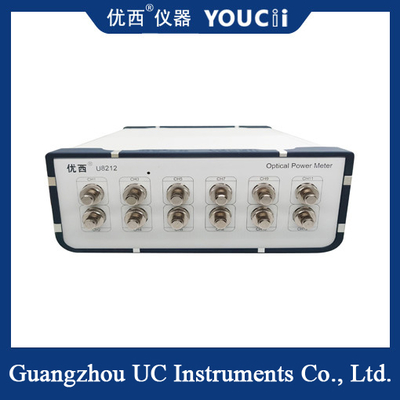

Large Image : 2/4/6/8/12/16 Multi - Channel Optional Power Meter ± 0.06 DB 850nm Wavelength

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Model Number:	U8212

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	10 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50pcs+per month

Contact Now

2/4/6/8/12/16 Multi - Channel Optional Power Meter ± 0.06 DB 850nm Wavelength

Description

Product Name:	Light Source Power Meter	Calibration Wavelength:	850nm 980nm 1310nm
Power Range:	+10 ~ -65dBm	Linearity (power):	≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -50dBm)
Fiber Type:	Standard SM And MM Up To 62.5 Um Core Size	Operation Temperature:	0 ～ +40℃
Highlight:	Multi Channel Optional Power Meter , 850nm Optional Power Meter

2/4/6/8/12/16 Multi-Channel Optional Power Meter ± 0.06 DB 850nm Wavelength

2/4/6/8/12/16 Multi-Channel Optional Power Meter

U8212/16 12/16 channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.

U8212/16 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. We provide low power, high power, Multi-channel optical power meter options.

2/4/6/8/12/16 Multi - Channel Optional Power Meter ± 0.06 DB 850nm Wavelength 0

Model #	U8212	U8216	U8212B	U8216B
Number of Channels	12	16	12	16
Power Range	+10 ~ -65dBm		+25 ~ -50dBm
Wavelength Range	850 ~ 1700 nm
Calibration Wavelength	850/980//1310/1490/1550/1610 nm(or other wavelengths are optional)
Sampling period	1ms (1KHz)
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	2.0 kg

Note: Multiple configurations exist for U82xx: xx indicates the number of channels. Optical interfaces can be FC, LC, or SC
