Product Details:
|
| Power Range (dBm): | + 5 ~ -65 | Optical Input Interface: | Supporting Bare Fiber Joint Or FC/LC/SC Adapter |
|---|---|---|---|
| Operation Temperature: | 0 ~ +40℃ | Wavelength Range(nm): | 850 ~ 1700 Nm |
| Highlight: | 1700nm Usb Optical Power Meter,40dB Optical Power Meter |
||

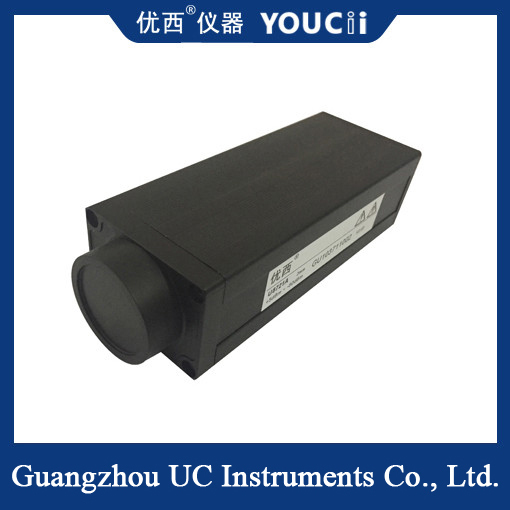

Usb Optical Power Meter Power Probe Multi Meter Small And Convenient
overview
The sampling period of U8721 high-speed optical power meter module of Guangzhou Youxi can reach uS level, which can collect and process data more quickly. The power meter module uses USB communication interface, can communicate with PC directly, through the configuration software to display data and set parameters.
The U8721 high speed optical power meter module can be used in high precision wavelength division multiplexing DWDM element, optical waveguide grating array AWG element, planar optical waveguide PLC element, WSS, OPM, DPSK, optical amplifier EDFA and other general optical fiber measurement applications. And the U8721 model has the A/B/C/D/H, and different models have different functions.
Laser signal input port. When connecting the fiber jumper to the optical power meter module, you need to use a connection adapter in the middle. The connection adapter must match the type of both the power meter interface connector and the optical fiber connector.Two typical connection adapters are listed for connecting optical fibers to the U8721 optical power meter.
bare optical fiber clip connects the adapter
FC/PC connection adapter
Model type
1.U8721A is mainly used for high-speed optical power monitoring.
2.U8721B photosensitive PD external, mainly used for spatial light scanning measurement.
3.U8721C fast synchronous scan is mainly used in DWDM/AWG wavelength scanning measurement system.
4.U8721D fast synchronous scan with BNC analog output.
U8721A/B/C/D/H Usb Optical Power Meter Power specification
|
model |
U8721A | U8721B | U8721C | U8721D | U8721H |
| Sensor Element | InGaAs | ||||
| Wavelength Range | 850 ~ 1700 nm | ||||
| Calibration wavelength | 850 / 980 / 1310 / 1510~1640nm continuous calibration | ||||
| Power Range (dBm) | + 5 ~ -65 | + 5 ~ -70 | + 5 ~ -80 | + 25 ~ -60 | |
|
Power sampling period(Rate) |
100 us(10KHz) | 10 us(100KHz) | |||
| Application Fiber Type | Standard SM and MM | ||||
| optical Input Interface | Supporting bare fiber joint or FC/LC/SC Adapter | ||||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | ||||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB typical value | ||||
| Linearity (power) | ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm) | ||||
| Return Loss | ＞ 40 dB | ||||
| Communication Interface | USB | +Trig | +Trig +BNC | +Trig | |
| calibration period | 2 years | ||||
| Operation Temperature | 0 ~ +40℃ | ||||
| Storage Temperature | -30 ~ +80℃ | ||||
| Dimensions | 52mm H,60 mm W,150 mm D | ||||
| Weight | 1.0 kg | ||||
