Product Details:
|
| Sensor Element: | InGaAs | Power Sampling Period（rate）: | 100 Us（10KHz） |
|---|---|---|---|
| Application Fiber Type: | Standard SM And MM Up To 62.5 Um Core Size | Linearity (power): | ≤ ± 0.05 DB (1200 Nm ~ 1610 Nm, 0~ -50dBm) |
| Resolution: | 0.001dB | Dimensions: | 245 Mm W, 105 Mm H, 320 Mm D |
| Highlight: | Dual Channel Optical Power Meter,Optical Power Meter 65dBm |
||

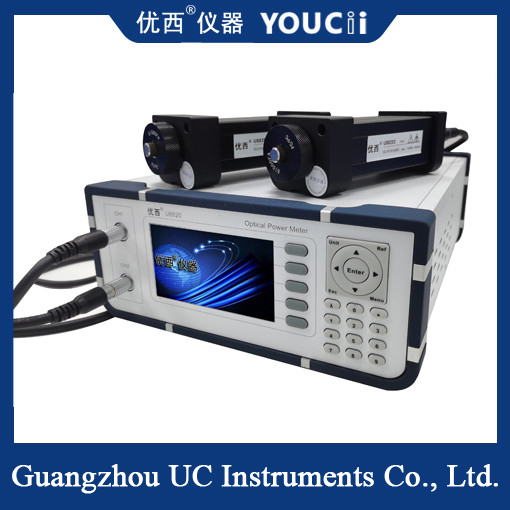

Dual Channel High Power Optical Power Meter +25 ~ -65dBm High Performance
U8820+2×U8820x optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
The U8820+2×U8820x optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter Probe options. Guangzhou U also Provides up to 64 channel host systems.
Questions commonly asked by users:
1.What fiber link is needed for light source and power meter execution?
A light source and a power meter are required to perform the most important measurement of a fibre optic link, the total insertion loss of that link. Basically, you compare the amount of light going into one end of the fibre with the amount of light coming out of the other end of the fibre.
2.How accurate are optical power meters?
The most accurate field optical power meters claim 1% calibration accuracy. This is orders of magnitude less accurate than a comparable electrical meter.
| Model # | U8820 + 2xU88203 | ||
| Sensor Element | InGaAs | ||
| Power Range | +25 ~ -65dBm | ||
| Wavelength Range | 850 ~ 1700 nm | ||
|
Power sampling period(rate) |
100 us(10KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | ||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | ||
| Resolution | 0.001dB | ||
| Return Loss | ＞ 40 dB | ||
| Communication Interface | RS232 / USB / RJ45 | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 Year | ||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | ||
| Weight | 4.0 kg | ||
