Product Details:
|
| Data Interface: | USB/RS232 | Wavelength Range: | 850 To 1770 Nm |
|---|---|---|---|
| Weight: | 2 Kg | Number Of Channels: | 2 |
| Application Fiber Type: | Standard SM And MM Up To 62.5 Um Core Size | Return Loss: | ＞ 40 DB |
| Highlight: | 1650Nm Return Loss Meter,Standard SM Return Loss Meter |
||
Optical Power Meter is an instrument used to measure optical signal strength or optical power. It is usually used in optical communication, optical fiber transmission, optical testing and calibration.

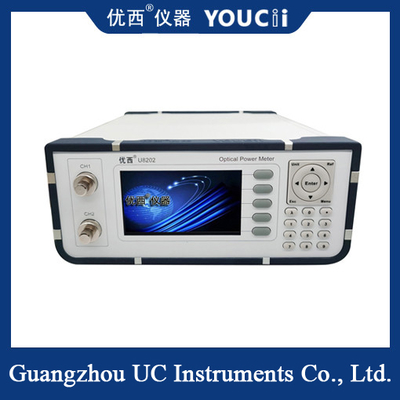

The Youcii U8202 Dual Channel optical Power meter is a portable, easy to use, high precision optical power measuring device. It has a wavelength range from 850nm to 1650nm, a power range from -65 DBM to +10dBm, and an absolute accuracy of ± 4% (1200 nm to 1610 nm). Its dynamic range is up to 80dB, suitable for a variety of applications. USB and RS232 data interfaces facilitate data access. It is powered by a battery or AC adapter and weighs just 2kg. This makes it an ideal tool for field and factory calibration and for monitoring optical power in many different situations.
