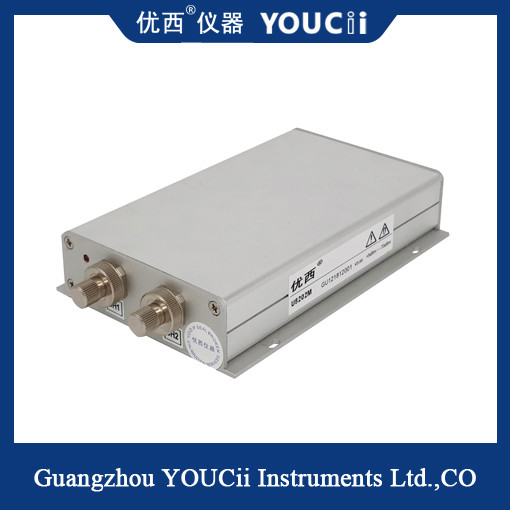

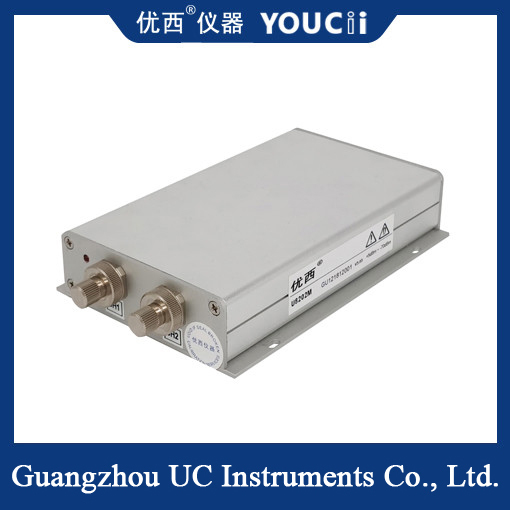

Dual Channel Mini Power Meter Module Cost-Effective Internal Chassis
Product Description:
Optical power meter is a reliable, accurate and user-friendly instrument for measuring optical power and return loss in fiber optic networks. The instrument is powered by an AC adapter and data can be connected via a DC line.
U8202M Double channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
U8202M Mini optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.
Features:
- Product Name: U8202M Double Channel Power Meter
- Operating Temperature: 0 ～ +40℃
- Dimension: 100 mm W, 30 mm H, 165 mm D
- Power Range:+10 ~ -65dBm
- Weight: 1 Kg
- Calibration: Factory
- Wavelength Range:850 ~ 1700 nm
- Return Loss:＞ 40 dB
Technical Parameters:
| Parameter |
Value |
|
Number of Channels
|
2
|
|
Power Range
|
+10 ~ -65dBm
|
|
Calibration Wavelength
|
850/980/1310/1490/1550/1610 nm
|
|
Application Fiber Type
|
Standard SM and MM up to 62.5 um core size
|
|
Linearity (power)
|
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
|
|
Return Loss
|
＞ 40 dB
|
| Power Supply |
DC5V3A, with 100~240V AC power adapter
|
|
Storage Temperature
|
-30 ～ +80℃
|
Support and Services:
Optical Power Meter Technical Support and Service We provide technical support via telephone, email, and online chat.
Our technical support staff can answer your questions quickly and accurately, and provide step-by-step instructions for any problems you may have. We also provide free software updates and product information.,
