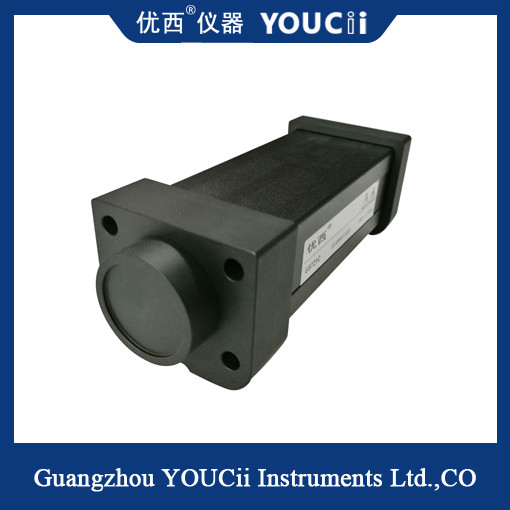

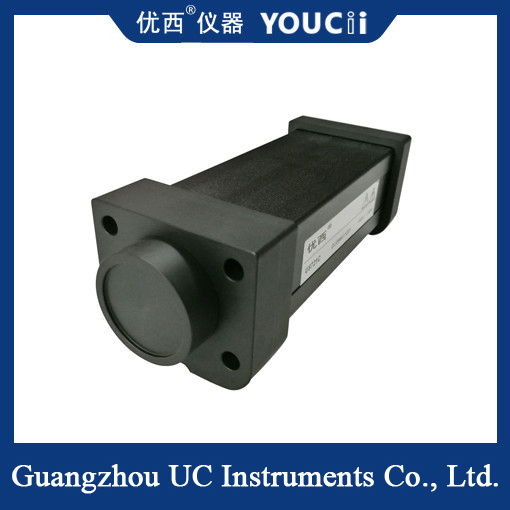

High Speed Power Meter Probe Power Range Of + 5 ~ -80dBm

Product Description:

The U8721C high speed optical power meter module can be used in high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifier EDFA and other general optical fiber optical measurement applications. Compared with other models of Guangzhou Youxi power meter, U8721 has the characteristics of high-speed sampling, and small shape, especially suitable for assembly into multi-channel optical power meter sampling system.

The common unit of optical power meters is the optical power unit watt (W) or milliwatt (mW), but decibels (dBm) can also be used as a reference unit. The accuracy and measurement range of optical power meters will vary depending on the model and brand, so the selection and use of optical power meters need to be considered according to the specific application needs.

Apply:

• Product Name: U8721 USB high-speed optical power meter
• WDM, GFF, AWG, PLC device test
• Insert loss, return loss measurement
• Optical fiber sensor, optical fiber cable test
• Polarization mode dispersion PMD and polarization dependent loss PDL measurement
• Optical fiber, communication R&D laboratory test

Technical Parameters:

Support and Services:

Optical Power Meter technical support and service includes:

• Troubleshooting and installation support
• Software updates
• Repair and calibration services
• Application support
• Product manuals
• Warranty and extended warranty options
