Product Details:
|
| Power Range: | +10 ~ -65dBm | Wavelength Range: | 850 ~ 1700 Nm |
|---|---|---|---|
| Absolute Uncertainty (accuracy) At Reference Condition: | ± 4% (1200 Nm ~ 1610 Nm) | Relative Uncertainty (accuracy) At Reference Condition: | ＜ 0.02 DB Typical |
| Return Loss: | ＞ 40 DB | Recalibration Period: | 2 Years |
| Highlight: | Multi Channel Optical Power Meter,1700nm Wavelength Optical Power Meter |
||

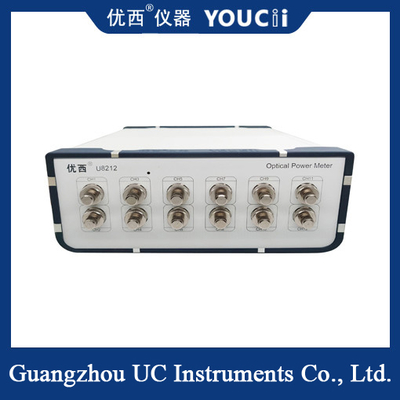

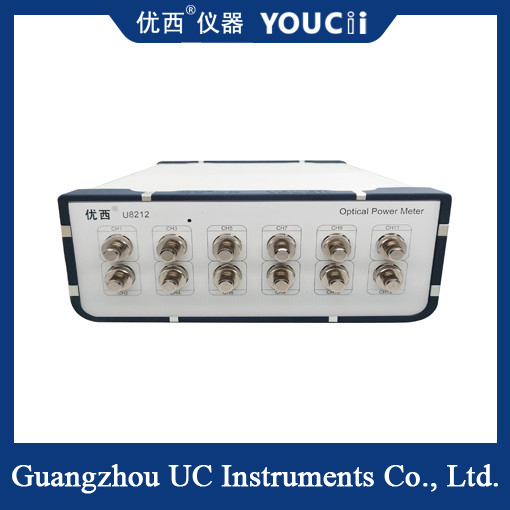

The optical power meter is an innovative device that can measure the power of optical signals over a wide range of wavelengths and power ranges. The U8212 instrument has the characteristics of high efficiency, small size, fast starting speed and economical benefits. It can provide the choice of low power, high power and multi-channel optical power meter.
The common unit of optical wattmeter is the optical power unit watt (W) or milliwatt (mW), but decibels (dBm) can also be used as a reference unit. The accuracy and measuring range of the optical power meter vary with the model and brand. Therefore, the selection and use of the optical power meter must be considered according to the specific application requirements. Optical power meter is an ideal choice for optical power monitoring, testing and maintenance.
|
parameter |
Detailed information |
|---|---|
|
Number of Channels |
12 |
| Wavelength Range |
850 ~ 1700 nm |
|
Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Return Loss |
＞ 40 dB |
| Warranty | 1 Year |
|
Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Power Supply | AC Adapter |
|
Operation Temperature |
0 ～ +40℃ |
Optical power meter technical support and service
We understand the importance of providing reliable technical support and service to our customers. We offer a wide range of services including:
Customers support our optical power meter products
Product troubleshooting and technical support and support telephone communication
We strive to ensure that our products are backed by the best technical support and service. Please contact us immediately to learn more about our technical support and services.
