Product Details:
|
| Highlight: | Multi Function Optical Power Meter,0.001dB Optical Power Meter |
||
|---|---|---|---|

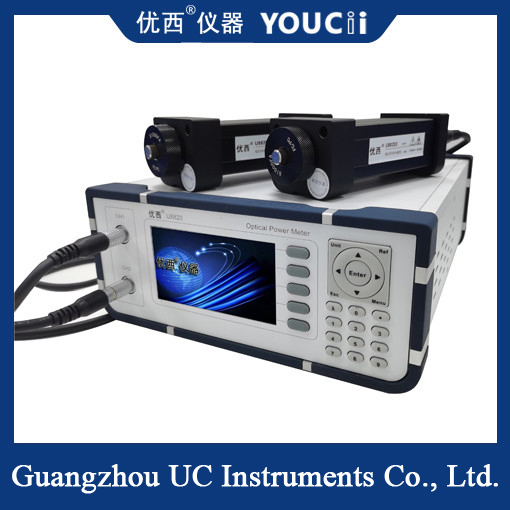

High-Precision Optical Power Meter Multi-Function Light Source Tester
1.Sensor Elemen:InGaAs
2.Power Range:+25 ~ -65dBm
3.Linearity (power):≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
4.Resolution:0.001dB
5.Recalibration Period:2 Years
| Model # | U8820 + 2xU88201 | U8820 + 2xU88202 | U8820 + 2xU88203 |
| Sensor Element | InGaAs | ||
| Power Range | +5 ~ -85dBm | +15 ~ -75dBm | +25 ~ -65dBm |
| Wavelength Range | 850 ~ 1700 nm | ||
|
Power sampling period(rate) |
100 us(10KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | ||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | ||
| Resolution | 0.001dB | ||
| Return Loss | ＞ 40 dB | ||
| Communication Interface | RS232 / USB / RJ45 | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 Year | ||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | ||
| Weight | 4.0 kg | ||
Our Tunable Laser Source products come with a comprehensive technical support and service package. Our team of experienced engineers is available to provide assistance with:
