Product Details:
|
| Wavelength Range: | 850/980/1310/1490/1550/1610 Nm | Application Fiber Type: | Standard SM And MM Up To 62.5 Um Core Size |
|---|---|---|---|
| Relative Uncertainty (accuracy): | ＜ 0.02 DB Typical | Communication Interface: | RS232, USB，Control By PC |
| Storage Temperature: | -30～+80℃ | Recalibration Period: | 2 Years |
| Highlight: | High Speed Desktop Optical Power Meter,1700nm Wavelength Optical Power Meter |
||

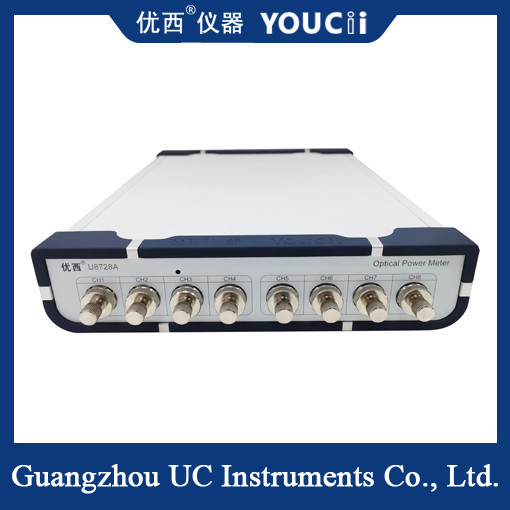

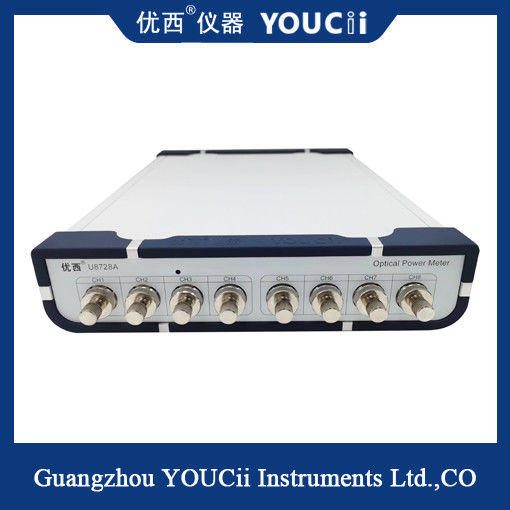

High Speed Power Meter Optical Power Meter Desktop Power Meter
Multi-channel optical power meter, small size, easy to carry. Optical power meters can be used for high-precision WD-division multiplexing DWDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other general optical fiber optical measurement applications. Especially suitable for assembly into multi-channel optical power meter sampling system.
Application
Active optical module/Optical Device Test:
In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized. In the sensitivity measurement of optical receiving module, it provides parallel, fast and accurate optical power input; 200ms optical power control stability time, greatly improve the test efficiency.
Optical communication network integration test:
Test network transmission performance and network management functions in optical communication network integration.
The optical power output can be quickly and accurately set. The optical power control stability time is less than 200 ms.
Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring.
small size, compact structure, simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
| Model # | U8728A | ||
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm
|
||
| Power Range | + 5 ~ -65dBm | ||
| Sampling period | 100us (10KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
