Dual Channel Optical Power Meter Module +10 ~ -65dBm/ +25 ~ -50dBm

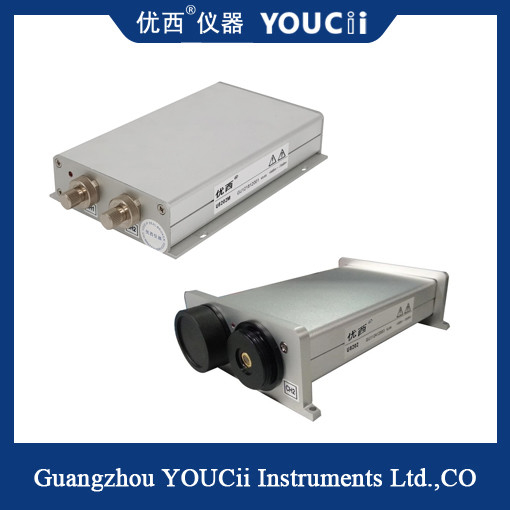

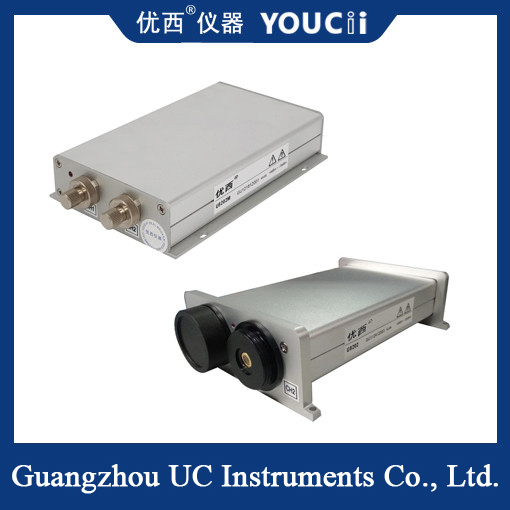

Large Image : Dual Channel Optical Power Meter Module +10 ~ -65dBm/ +25 ~ -50dBm

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8202M

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 pcs+per month

Contact Now

Dual Channel Optical Power Meter Module +10 ~ -65dBm/ +25 ~ -50dBm

Description

Number Of Channels:	2	Power Sampling Period（rate）:	100 Us（10KHz）
Calibration Wavelength:	850/980/1310/1490/1550/1610 Nm	Communication Interface:	RS232
Power Supply:	Support Online Data Acquisition And Storage For 2 Hours And Draw Power Curve	Storage Temperature:	-30 ～ +80℃
Highlight:	Dual Channel Optical Power Meter , 65dBm Optical Power Meter

Dual Channel Optical Power Meter Module +10 ~ -65dBm/ +25 ~ -50dBm

U8202M Double channel Mini optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.

U8202M Mini optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.

Technical specification

Model #	U8201M	U8202M	U8201MH	U8202MH
Number of Channels	1	2	1	2
Power Range	+10 ~ -65dBm		+25 ~ -50dBm
Wavelength Range	850 ~ 1700 nm
Power sampling period(rate)	100 us(10KHz)
Calibration Wavelength	850/980/1310/1490/1550/1610 nm
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Communication Interface	RS232
Sampling Data Storage	Support online data acquisition and storage for 2 hours and draw power curve
Power Supply	DC5V3A, with 100~240V AC power adapter
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	100 mm W, 30 mm H, 165 mm D
Weight	1.0 kg

Other users also ask the following questions:

1.How accurate are optical power meters?

The most accurate field optical power meters claim 1% calibration accuracy. This is orders of magnitude less accurate than a comparable electrical meter.

2.What is the range of optical meter?

Generally, the optical power that optical power meter can measure is ranging from -70dBm to +30dBm. Interface Type: A length of fiber patch cable is usually used to connect the port on optical power meter with the corresponding port of devices for fiber optic testing.
