Multi - Channel Optical Power Meter Screen Optional Cost - Effective

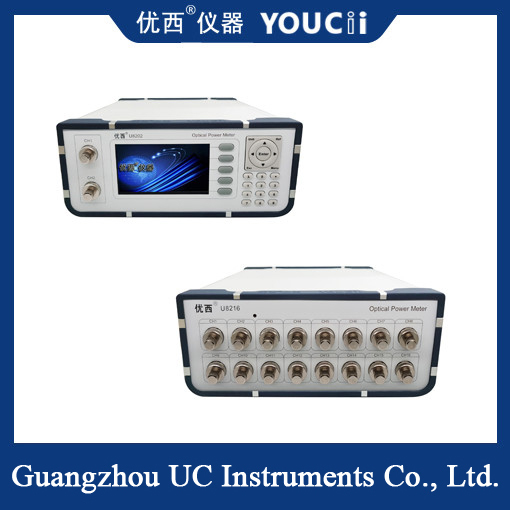

Large Image : Multi - Channel Optical Power Meter Screen Optional Cost - Effective

Product Details:

Place of Origin:	China
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8202/U8212

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 pcs+per month

Contact Now

Multi - Channel Optical Power Meter Screen Optional Cost - Effective

Description

Wavelength Range:	850 ~ 1700 Nm	Application Fiber Type:	Application Fiber Type
Absolute Uncertainty (accuracy) At Reference Condition:	± 4% (1200 Nm ~ 1610 Nm)	Relative Uncertainty (accuracy) At Reference Condition:	＜ 0.02 DB Typical Values
Operation Temperature:	0～ +40 ℃	Recalibration Period:	2 Years
Highlight:	Multi Channel Optical Power Meter , 1700nm Optical Power Meter

Multi-Channel Optical Power Meter Screen Optional Cost-Effective

U8202 2 channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.

U8202 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.

U8212 12 channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.

U8212 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. We provide low power, high power, Multi-channel optical power meter options.

The difference between the U8202 and U8212 models is that the U8202 model is a power meter with a display, while the U8212 model is a power meter without a display.

Technical specification

Model #	U8202
Number of Channels	2
Power Range	+10 ~ -65dBm
Wavelength Range	850 ~ 1700 nm
Calibration Wavelength	850/980/1310/1490/1550/1610 nm
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	2.0 kg

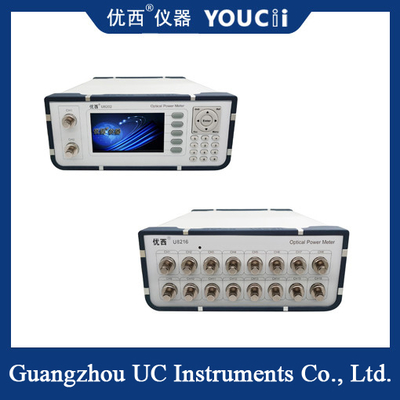

Multi - Channel Optical Power Meter Screen Optional Cost - Effective 0

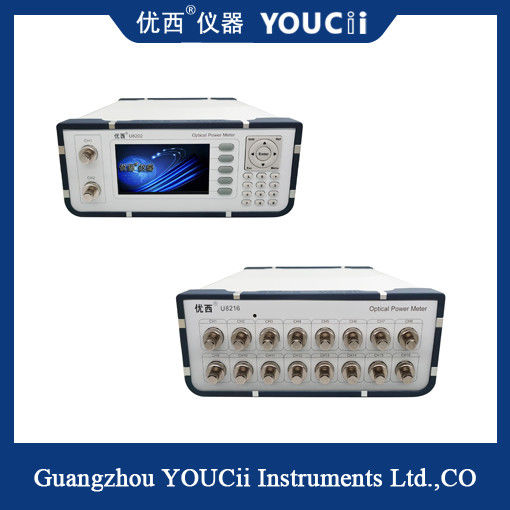

Multi - Channel Optical Power Meter Screen Optional Cost - Effective 1
