Product Details:
|
| Sensor Element: | InGaAs | Calibration Wavelength: | 850/980/1310/1490/1550/1610 Nm |
|---|---|---|---|
| Application Fiber Type: | Standard SM And MM Up To 62.5 Um Core Size | Linearity (power): | ≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 5~ -50dBm) |
| Storage Temperature: | -30 ~ +80℃ | Dimensions: | 37 Mm W, 25 Mm H, 115 Mm D |
| Highlight: | Mini Optical Power Meter,Lightweight Optical Power Meter |
||

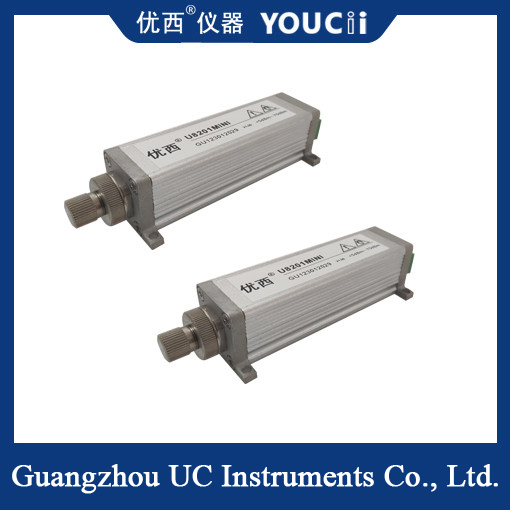

The Mini Optical Power Meter Is Lightweight And Compact
The UC8201MINI optical power meter module of Guangzhou Uniwest adopts a 6PIN communication interface, uses a matching socket to communicate with a PC, and displays data and sets parameters through configuration software.
The UC8201MINI optical power meter module can be used for high-precision WD-division multiplexing DWDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other general optical fiber optical measurement applications. Compared with other models of power meters, UC8201MINI has the characteristics of compact shape, especially suitable for assembly into multi-channel optical power meter sampling systems.
Characteristic point
Fast startup and high measurement accuracy.
Wide dynamic power measurement range.
A wide selection of power ranges and channels.
RS232 communication, stable and small.
Affordable.
|
MODEL |
UC8201MINI |
| Sensor Element | InGaAs |
| Wavelength Range | 850 ~ 1700 nm |
| Calibration wavelength | 850/980/1310/1490/1550/1610 nm |
| Power Range (dBm) | +7 ~ -70 dBm |
|
Power sampling period(Rate) |
1 ms(1KHz) |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
| Optical Input Interface | FC/PC or FC/APC |
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) |
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical |
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 5~ -50dBm) |
| Return Loss | ＞ 40 dB |
| Communication Interface | RS232 |
| Calibration period | 2 年 |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -30 ~ +80℃ |
| Dimensions | 37 mm W, 25 mm H, 115 mm D |
| Weight | 0.5 kg |
