Product Details:
|
| Calibration Wavelength: | 850/980/1310/1490/1550/1610 Nm | Sampling Period: | 10 Us (100KHz) |
|---|---|---|---|
| Power Range: | +5 ~ -75dBm | Communication Interface: | RS232, USB,RJ45 Control By PC |
| Operation Temperature: | 0 ～ +40℃ | Model: | U87248C |
| Highlight: | 48 Channel Fast Optical Power Meter,High Performance Fast Optical Power Meter |
||

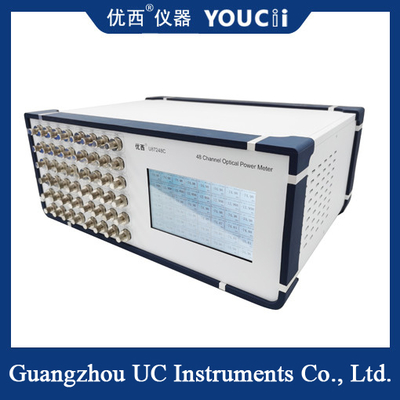

48-Channel Fast Optical Power Meter High Performance Fast Start
Outline:
Multi-channel optical power meter, small size, easy to carry. Optical power meters can be used for high-precision WD-division multiplexing DWDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other general optical fiber optical measurement applications. Especially suitable for assembly into multi-channel optical power meter sampling system.
Characteristic point:
1.The optical power output can be quickly and accurately set. The optical power control stability time is less than 200 ms.
2. Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring.
3.small size, compact structure, simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
Technical specification:
| Model # | U87248C | ||
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850 / 980 / 1310 / 1490 / 1510~1625 nm | ||
| Power Range | +5 ~ -75dBm | ||
| Sampling period | 10 us (100KHz) | ||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0 ~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,RJ45 Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
