Multichannel Optical Power Meter 1510~1625 Nm Continuous Calibration

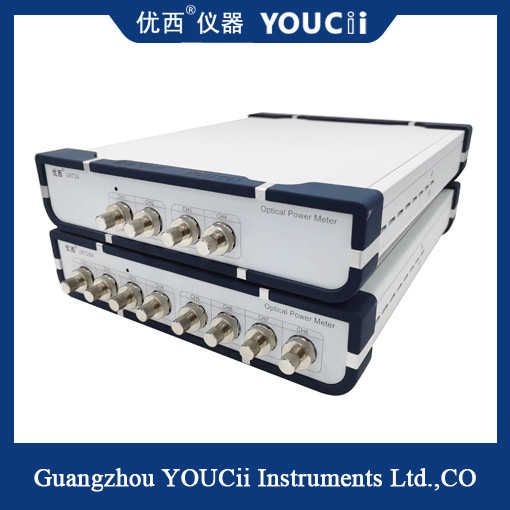

Large Image : Multichannel Optical Power Meter 1510~1625 Nm Continuous Calibration

Product Details:

Place of Origin:	CHINA
Brand Name:	YOUCii
Certification:	CU,IOS
Model Number:	U8724C/U8728C

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability:	20 pcs+per month

Contact Now

Multichannel Optical Power Meter 1510~1625 Nm Continuous Calibration

Description

Sensor Element:	InGaAs	Calibration Wavelength:	850/980/1310/1490/1550/1610 Nm/1510~1625 Nm Continuous Calibration
Application Fiber Type:	Standard SM And MM Up To 62.5 Um Core Size	Uncertainty (accuracy):	± 4% (1200 Nm ~ 1610 Nm)
Linearity (power):	≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -60dBm)	Operation Temperature:	0～ +40 ℃
Highlight:	Multichannel Optical Power Meter , 1625Nm Optical Power Meter

Multichannel Optical Power Meter 1510~1625 Nm Continuous Calibration

Product introduction:

U8724/8 4/8 Channel optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.

U8724 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou U can provide low power, high power 4 channel and 8 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.

U8724/8 technical specification:

Model #	U8724/8A	U8724/8B	U8724/8C
Sensor Element	InGaAs
Wavelength Range	850 ~ 1700 nm
Calibration Wavelength	850/980/1310/1490/1550/1610 nm		1510~1625 nm Continuous calibration
Power Range	+10 ~ -65dBm	+25~-55dBm	+5~-75dBm
Sampling period	100us (10KHz)		10 us (100KHz)
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy)	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy)	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss	＞40 dB
Communication Interface	RS232, USB,Control by PC
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	235 mm W, 55mm H, 320 mm D
Weight	3.0 kg

Multichannel Optical Power Meter 1510~1625 Nm Continuous Calibration 0
