Product Details:
|
| Sensor Element: | InGaAs | Power Range: | +25~-55dBm/+5~-75dBm |
|---|---|---|---|
| Relative Uncertainty (accuracy): | ＜ 0.02 DB Typical | Communication Interface: | RS232, USB，Control By PC |
| Return Loss: | ＞ 40 DB | Recalibration Period: | 2 Years |
| Highlight: | Fast Sampling Optical Power Meter,4 Channel Optical Power Meter |
||

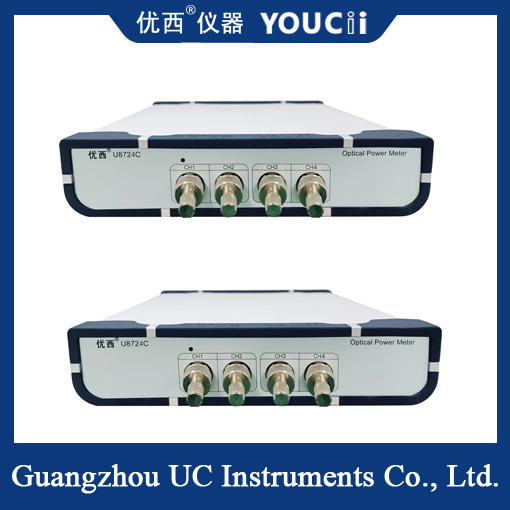

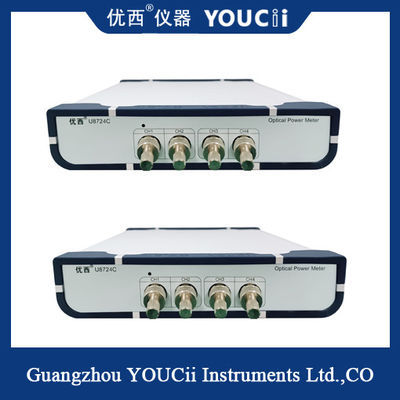

Superior Performance Of 4-Channel Fast Sampling Optical Power Meter
U8724 4-channel optical power meter is mainly used for high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, optical amplifiers and other general optical fiber measurement and application, superior performance, economic and practical.
The U8724 optical power meter measuring system has the characteristics of high performance, small size, fast start-up and affordable price. Euwest Instruments offers a choice of low-power, high-power, 4-channel and 8-channel optical power meters, as well as combined test systems up to 64 channels.
The 4-channel optical power meter has the following advantages:
High-precision measurement: The optical power of each channel can be measured quickly and accurately, providing high-precision measurement results.
Multi-channel measurement: The optical power of multiple channels can be measured at the same time, which is suitable for application scenarios that require multi-channel measurement.
Real-time monitoring: The optical power changes of each channel can be monitored in real time, which is easy to find and solve problems in time.
Easy to use: with a friendly user interface and easy to use operation mode, easy for users to operate and data transfer.
High reliability: It has high reliability and stability, and can ensure long-term stable use.
| Model | U8724 | U8724C | |
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm |
1510~1625 nm Continuous calibration |
|
| Power Range | +25~-55dBm | +5~-75dBm | |
| Sampling period | 100us (10KHz) | 10 us (100KHz) | |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
