Product Details:
|
| Sensor Element: | InGaAs | Application Fiber Type: | Standard SM And MM Up To 62.5 Um Core Size |
|---|---|---|---|
| Return Loss: | ＞40 DB | Wavelength Range: | 850 ~ 1700 Nm |
| Uncertainty (accuracy): | ± 4% (1200 Nm ~ 1610 Nm) | Operation Temperature: | 0～ +40 ℃ |
| Highlight: | PLC Elements Optical Power Meter,Planar Waveguide Optical Power Meter |
||

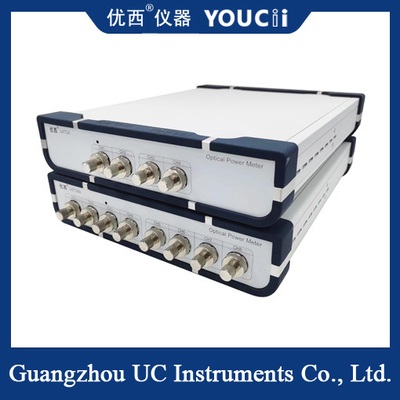

4-Channel Optical Power Meter Is Used For Planar Optical Waveguide PLC Elements
Product:
The U8724 four-channel optical power meter is mainly used for high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, optical amplifiers and other general optical fiber measurement and application. It has the characteristics of high performance, small size, fast start-up and affordable price.
The U8724 optical power meter measurement system can provide customers with low power, high power, 4 channel and 8 channel optical power meters to choose from, and can also provide customers with up to 64 channel combined test system.
Peculiarity:
1.The optical power output can be quickly and accurately set. The optical power control stability time is less than 200 ms.
2. Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring.
3. small size, compact structure, simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.
Specification
| Model # | U8724A | U8724H | U8724C |
| Sensor Element | InGaAs | ||
| Wavelength Range | 850 ~ 1700 nm | ||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm |
1510~1625 nm Continuous calibration |
|
| Power Range | +10 ~ -65dBm | +25~-55dBm | +5~-75dBm |
| Sampling period | 100us (10KHz) | 10 us (100KHz) | |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | ||
| Uncertainty (accuracy) | ± 4% (1200 nm ~ 1610 nm) | ||
| Relative Uncertainty (accuracy) | ＜ 0.02 dB Typical | ||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | ||
| Return Loss | ＞40 dB | ||
| Communication Interface | RS232, USB,Control by PC | ||
| Operation Temperature | 0 ～ +40℃ | ||
| Storage Temperature | -30 ～ +80℃ | ||
| Recalibration Period | 2 years | ||
| Dimensions | 235 mm W, 55mm H, 320 mm D | ||
| Weight | 3.0 kg | ||
