High Speed Optical Power Meter Small Size +Trig +BNC

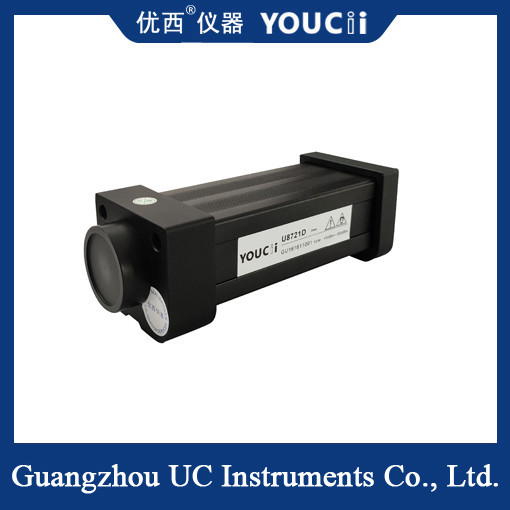

Large Image : High Speed Optical Power Meter Small Size +Trig +BNC

Product Details:

Place of Origin:	China
Brand Name:	YOUCII
Certification:	CU,IOS
Model Number:	U8721D

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	20 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,T/T
Supply Ability:	20 pcs+per month

Contact Now

High Speed Optical Power Meter Small Size +Trig +BNC

Description

Sensor Element:	InGaAs	Calibration Wavelength:	850 / 980 / 1310 / 1510~1640nm Continuous Calibration
Power Sampling Period（Rate）:	10 Us（100KHz）	Communication Interface:	+Trig +BNC
Operation Temperature:	0 ~ +40℃	Weight:	1.0kg
Highlight:	+Trig optical power meter , +BNC optical power meter , High speed optical power meter

High speed optical power meter small size +Trig +BNC

The U8721 high-speed optical power meter probe is a USB interface optical power meter module, which has the characteristics of high-speed sampling, and its sampling period can reach the order of microseconds, which makes the data acquisition and processing faster. In addition, it uses USB communication interface, can directly communicate with the PC, through the Demo program to display data and set parameters, convenient for users to operate and manage.

The small size of the probe makes it particularly suitable for optical power meter sampling systems assembled into multiple forms and multiple channels. It can be used for high precision WD-division multiplexing DWDM components, AWG/PLC components and other general optical fiber optical measurement applications, and provides an effective tool for research and experiments in related fields.

Specification

Model	U8721D
Sensor Element	InGaAs
Wavelength Range	850 ~ 1700 nm
Calibration wavelength	850 / 980 / 1310 / 1510~1640nm Continuous calibration
Power Range (dBm)	+ 5 ~ -80
Power sampling period(Rate)	10 us(100KHz)
Application Fiber Type	Standard SM and MM
optical Input Interface	Supporting bare fiber joint or FC/LC/SC Adapter
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical value
Linearity (power)	≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm)
Return Loss	＞ 40 dB
Communication Interface	+Trig +BNC
Calibration period	2 years
Operation Temperature	0 ~ +40℃
Storage Temperature	-30 ~ +80℃
Dimensions	52mm H,60 mm W,150 mm D
Weight	1.0 kg

High Speed Optical Power Meter Small Size +Trig +BNC 0
