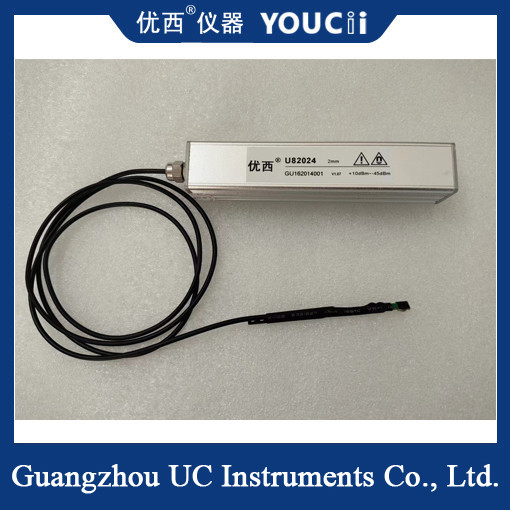

Optical Power Meter Host And External Ultra-Thin PD

Optical Power Meter Host And External Ultra-Thin PD
Optical Power Meter Host And External Ultra-Thin PD

Large Image :  Optical Power Meter Host And External Ultra-Thin PD

Product Details:
Place of Origin: China
Brand Name: YOUCII
Certification: CU,IOS
Model Number: U82024
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,T/T
Supply Ability: 20 pcs+ per year
Contact Now

Optical Power Meter Host And External Ultra-Thin PD

Description
Sensor Element: InGaAs Power Sampling Period（rate）: 1 Ms（1KHz）
Return Loss: ＞ 40 DB Power Range: +10 ~ - 45 DBm
Probe Front Dimension: Bare Fiber Input Storage Temperature: -30～+80 ℃
Highlight:

Ultra-Thin PD Optical Power Meter

,

Host Optical Power Meter

Optical Power Meter Host And External Ultra-Thin PD


The U82024 ultra-thin PD external optical power probe uses InGaAs as a detector type, the detection surface size reaches φ2mm, and the wavelength range covers 900 to 1700nm, which is a very wide wavelength range.

In addition, the probe has a segmented calibration function, including calibration wavelengths of 1310nm, 1550nm and 1650nm. In terms of power, it measures from +10dBm to -45dBm, while the power sampling period (rate) is 1ms (i.e., 1KHz).


Model # U82024
Sensor Element InGaAs
PD Size φ2 mm
Wavelength Range 900 ~ 1700 nm
Calibration wavelength 1310 / 1550 / 1650nm Step calibration
Power Range +10 ~ - 45 dBm

Power sampling period(rate)

 1 ms(1KHz)
Application Fiber Type

Standard SM and MM up to 62.5 um core size

Absolute Uncertainty (accuracy) at reference condition

 ± 4% (1200 nm ~ 1650 nm)

Relative Uncertainty (accuracy) at reference condition

 ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1650 nm, 0 ~ -40dBm)
Return Loss ＞ 40 dB
Optical Input Interface Bare fiber input
Probe front dimension 5.0 mm W x 2.5 mm H x 20.0 mm D
Communication Interface RS232 / USB
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Recalibration Period 2 Year
External PD end dimensions 5 mm W, 2.5 mm H, 20 mm D
Weight 0.5 kg
