Product Details:
|
| Device Package（U8130）: | Butterfly | Optional Wavelength（U8130）: | 1305/1308 Nm |
|---|---|---|---|
| Optional Wavelength（U82021）: | 850 ~ 1700 Nm | Output Power（U8130）: | ≥10.0mW |
| Return Loss（U82021）: | ＞ 40 DB | Linearity （U82021）: | ≤ ± 0.06 DB (1200 Nm ~ 1610 Nm, 0~ -60dBm) |
| Highlight: | External Optical Power Meter,Single Point Light Source Power Meter |
||

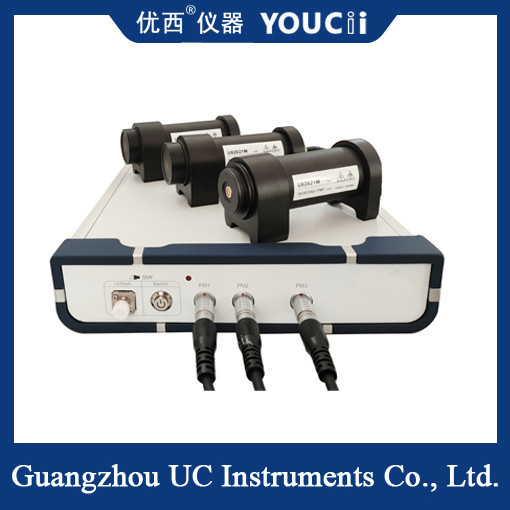

Single Point Light Source And External Optical Power Meter
U8130 Multichannel DFB laser source offer superior performance for the testing of CWDM, DWDM components, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications. It is specifically designed for high volume CWDM, couplers and PLC prodUtion line application.
The U82021 optical power meter is widely used in passive general optical fiber measurement and application of optical communication.
U8130 specification
| Model # | U8130 |
| Device Package | Butterfly |
| Optional Wavelength | 1305/1308 |
| Wavelength Accuracy | ± 2 nm |
| Output Power | ≥10.0mW |
| Connector Type | FC/APC ( Other Adaptor Can Be Customized) |
| Bandwidth@3 dB | ＜ 0.1 nm |
| Bandwidth@20 dB | ＜ 0.5 nm |
|
Output Power Stability within 15mins |
≤±0.005 dB |
|
Output Power Stability within 8 hrs |
≤±0. 05 dB |
| SMSR | ＞ 45 dB(1270nm etc.) |
| Operation Temperature | 0～ +40 ℃ |
| Storage Temperature | -30～+80 ℃ |
| Dimensions | 235 mm W, 55 mm H, 320 mm D |
| Weight | 3.0 kg |
U82021 specification
| Model # | U82021 | 2xU82021 | U82023 | 2xU82023 |
| Number of Channels | 1 | 2 | 1 | 2 |
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
| Wavelength Range | 850 ~ 1700 nm | |||
|
Power sampling period(rate) |
100 us(10KHz) | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Communication Interface | RS232, USB,Control by PC (RJ45 option) | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 Year | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 3.5 kg | |||
