Product Details:
|
| Sensor Element: | InGaAs | Application Fiber Type: | Standard SM And MM Up To 62.5 Um Core Size |
|---|---|---|---|
| Return Loss: | ＞ 40 DB | Communication Interface: | RS232 |
| Operation Temperature: | 0 ~ +40℃ | Weight: | 0.5KG |
| Highlight: | Single Channel Mini Optical Power Meter,RS232 Mini Optical Power Meter,Mini Optical Power Meter |
||

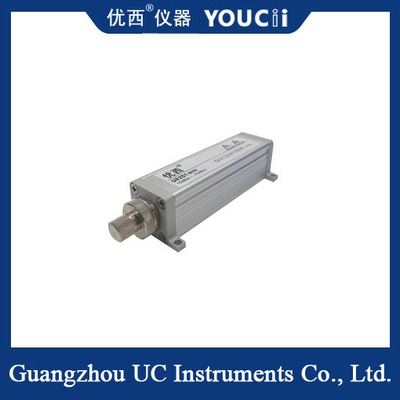

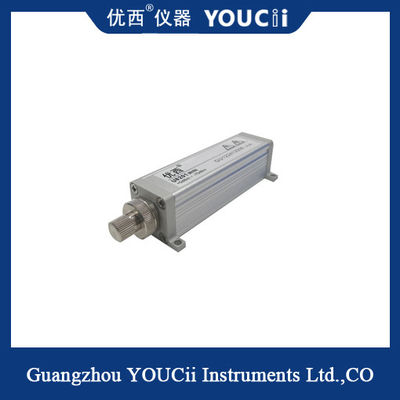

Single Channel Mini Optical Power Meter Has Excellent Performance And Small Size
The UC8201MINI optical power meter module can be used for high-precision WD-division multiplexing DWDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other general optical fiber optical measurement applications. Compared with other models of power meters, UC8201MINI has the characteristics of compact shape, especially suitable for assembly into multi-channel optical power meter sampling systems.
Should
1.WDM, GFF, AWG, PLC device test
2. Insert loss, return loss measurement
3. Optical fiber sensor, optical fiber cable test
4.Polarization mode dispersion PMD and polarization dependent loss PDL measurement
5.Optical fiber, communication R&D laboratory test
peculiarity
1.Fast startup and high measurement accuracy.
2.Wide dynamic power measurement range.
specification
| Model | U8201MINI |
| Sensor Element | InGaAs |
| Wavelength Range | 850 ~ 1700 nm |
| Calibration wavelength | 850/980/1310/1490/1550/1610 nm |
| Power Range (dBm) | +7 ~ -70 dBm |
|
Power sampling period(Rate) |
1 ms(1KHz) |
| Application Fiber Type | Standard SM and MM up to 62.5 um core size |
| optical Input Interface | FC/PC or FC/APC |
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) |
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical |
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 5~ -50dBm) |
| Return Loss | ＞ 40 dB |
| Communication Interface | RS232 |
| Calibration period | 2 years |
| Operation Temperature | 0 ~ +40℃ |
| Storage Temperature | -30 ~ +80℃ |
| Dimensions | 37 mm W, 25 mm H, 115 mm D |
| Weight | 0.5 kg |
