Product Details:
|
| Product: | Optical Power Meter | Sampling Period: | 100us (10KHz) |
|---|---|---|---|
| Interface: | USB | Imensions: | 245 Mm W, 105 Mm H, 320 Mm D |
| Linearity: | +/- 0.02dB | Warranty: | 1 Year |
| Supply Voltage: | 100~240V | ||
| Highlight: | USB Optical Power Meter Probe,Fast Scanning Optical Power Meter Probe,Small Size Optical Power Meter Probe |
||

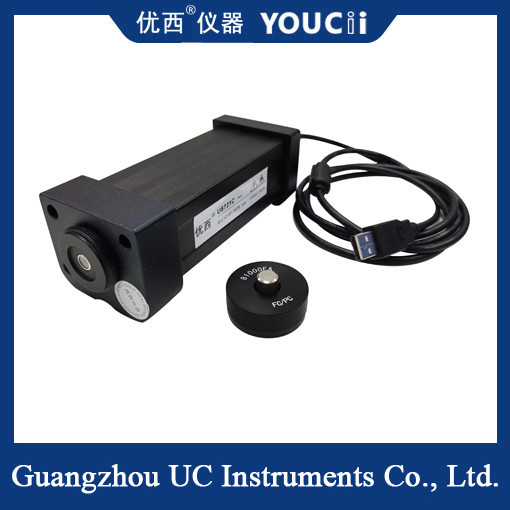

USB Fast Scanning Optical Power Meter Probe +5~-80dBm Small Size
USB Fast scanning optical power meter probe is a kind of optical power measurement device with integrated USB interface and fast scanning function. It can be directly connected to the computer to achieve fast and accurate measurement of optical power through dedicated software. The probe is compact and easy to carry, and is suitable for a variety of optical power measurement scenarios.
Technical characteristics
Fast scanning: The USB fast scanning optical power meter probe has a very high sampling rate, which can achieve rapid monitoring and recording of optical power to meet the needs of rapidly changing optical power measurement.
High precision measurement: The use of high-quality photosensitive components and advanced signal processing technology to ensure the accuracy and reliability of measurement results.
Wide applicability: Support for long band measurements from ultraviolet to far infrared, covering a wide range of light sources and wavelengths.
Convenient operation: Connect the computer through the USB interface, use the software for operation and data analysis, simplify the operation process and improve work efficiency.
Specification
| Product model | U8721C | |
| Sensor Element | InGaAs | |
| Wavelength Range | 850 ~ 1700 nm | |
| Calibration wavelength | 980/1310/1490 / 1510~1640nm Continuous calibration | |
| Power Range | + 5 ~ -80dBm | |
| Power sampling period(Rate) | 10 us(100KHz) | |
| Application Fiber Type | Standard SM and MM | |
| optical Input Interface | Supporting bare fiber joint or FC/LC/SC Adapter | |
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) | |
| Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical value | |
| Linearity (power) | ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm) | |
| Return Loss | ＞ 40 dB | |
| Communication Interface | USB + trig | USB + Trig + BNC Analog quantity |
| Calibration period | 2 years | |
| Operation Temperature | 0 ~ +40℃ | |
| Storage Temperature | -30 ~ +80℃ | |
| Dimensions | 52mm H,60 mm W,150 mm D | |
| Weight | 1kg | |
Application scenario
USB fast scanning optical power meter probe is widely used in communication, scientific research, industry and other fields, such as:
Optical communication system: used to measure the optical power in the optical fiber communication system to ensure the quality of signal transmission.
Scientific research experiments: in the field of optics, physics, chemistry and other scientific research, used to measure and study the change law of optical power.
Industrial detection: Used for real-time monitoring and control of optical power in industrial fields such as laser processing and photoelectric detection.
