Product Details:
|
| Battery: | 300 Hours | Calibration Wavelength: | 633 Nm |
|---|---|---|---|
| Weight: | 0.5kg | Power Supply: | 9 V Battery Or USB |
| Product: | Optical Power Meter | Power Linearity: | ±0.02 DB |
| Dimensions: | 52mm H,60 Mm W,150 Mm D | ||
| Highlight: | Small Size Optical Power Meter Probe,High Stability Optical Power Meter Probe,80dBm Optical Power Meter Probe |
||

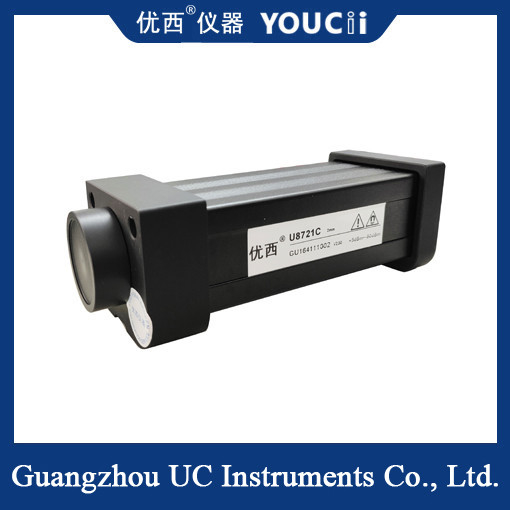

Optical Power Meter Probe High Stability Small Size +5~-80dBm
Based on the photoelectric conversion principle, the optical power meter probe converts the optical signal into an electrical signal for measurement. The core component is a photodetector. When the light signal is illuminated on the photodetector, the photocurrent is generated, and the power of the optical signal can be calculated by measuring the size of the photocurrent. In addition, optical power meter probes often have signal processing circuits for amplifying, filtering, and digitizing the photocurrent to improve measurement accuracy and stability.
Optical power meter probes are widely used in optical communication, optical fiber sensing, optical cable construction, maintenance and CATV. In optical fiber transmission systems, optical power meter probes can be used to measure the transmit power, receive power and fiber link loss of optical signals, so as to evaluate the performance of optical networks. In addition, in the field of optical fiber sensing, the optical power meter probe can also be used to measure the optical power output of the optical fiber sensor, which provides a basis for the performance analysis of the sensor.
Specification
| Product model | U8721C | |
| Sensor Element | InGaAs | |
| Wavelength Range | 850 ~ 1700 nm | |
| Calibration wavelength | 980/1310/1490 / 1510~1640nm Continuous calibration | |
| Power Range | + 5 ~ -80dBm | |
| Power sampling period(Rate) | 10 us(100KHz) | |
| Application Fiber Type | Standard SM and MM | |
| optical Input Interface | Supporting bare fiber joint or FC/LC/SC Adapter | |
| Absolute Uncertainty (accuracy) at reference condition | ± 4% (1200 nm ~ 1610 nm) | |
| Relative Uncertainty (accuracy) at reference condition | ＜ 0.02 dB Typical value | |
| Linearity (power) | ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm) | |
| Return Loss | ＞ 40 dB | |
| Communication Interface | USB + trig | USB + Trig + BNC Analog quantity |
| Calibration period | 2 years | |
| Operation Temperature | 0 ~ +40℃ | |
| Storage Temperature | -30 ~ +80℃ | |
| Dimensions | 52mm H,60 mm W,150 mm D | |
| Weight | 0.5kg | |
Matters needing attention
When using the optical power meter probe, you should comply with the operating specifications in the product manual to avoid damage or inaccurate measurement results caused by improper operation.
The optical power meter probe is calibrated and maintained regularly to ensure its measurement accuracy and stability.
During storage and transportation, attention should be paid to protecting the optical power meter probe from mechanical damage and moisture.
