Product Details:
|
| Relative Uncertainty: | ＜ 0.02 DB Typical | Output Power: | 10mw |
|---|---|---|---|
| Operating Temperature: | 0°C To 50°C | Optical Fiber Type: | Single-mode Fiber |
| Communication Interface: | RS232, USB,Control By PC (RJ45 Option) | Temperature Operating: | –10 °C To 50 °C |
| Wavelength: | 1310,1490,1550,1625nm | ||
| Highlight: | Display Optical Power Meter,High Stability Optical Power Meter,8 Channel Optical Power Meter |
||

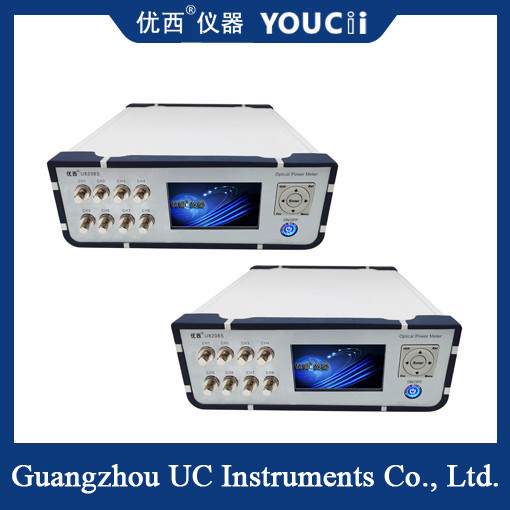

8-Channel Optical Power Meter With Display High Stability
Main feature
Multi-channel measurement: With 8 independent optical power measurement channels, you can monitor multiple optical signals at the same time, improving work efficiency.
High-precision measurement: Advanced photoelectric conversion technology and signal processing algorithm are used to achieve high-precision optical power measurement to meet the test needs of various optical fiber communication systems.
Large-screen display: equipped with a clear and easy-to-read display screen, it can display key information such as optical power value and wavelength of each channel in real time, which is convenient for users to observe and record.
Wide wavelength range: Support a variety of wavelengths of optical power measurement, such as 1260nm, 1310nm, 1490nm, 1550nm, etc., suitable for different optical fiber communication system test requirements.
Data storage and communication: With data storage function, the measurement results can be saved for subsequent analysis. At the same time, it supports communication interfaces such as RS232 and USB to facilitate data exchange and remote control with computers or other devices.
Technical specification
| Model # | U8201 | U8202 | U8204 | U820XH |
| Number of Channels | 1 | 2 | 4 | X |
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg |
|||
Application scenario
The 8-channel optical power meter with display screen is widely used in the research and development, production, maintenance and testing of optical fiber communication system. Specific application scenarios include but are not limited to:
Optical fiber communication system test: Used to test key parameters such as optical power loss and optical signal quality of the optical fiber communication system to ensure the normal operation of the system.
Optical device performance test: used to test the performance indicators of optical devices such as optical amplifiers, optical attenuators, optical switches, etc., to provide data support for device development and production.
Optical fiber network maintenance: Used for routine maintenance of optical fiber networks, monitoring the power changes of optical signals, and timely detection and troubleshooting.
