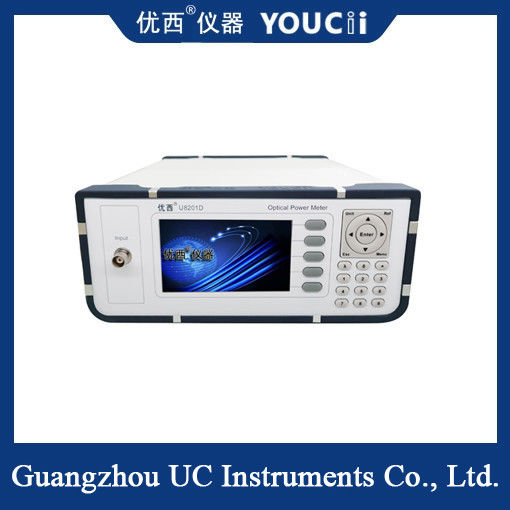

Economical Optical Power Meter With Single Channel BNC Interface
The working principle of the single channel economical optical power meter is based on the photoelectric effect and signal processing technology. When the light signal enters the optical power timer, it is first received by a light detector (such as a photodiode). The light detector converts the received light signal into an electrical signal, which is then amplified by an amplifier. The amplified signal is converted into a digital signal by an analog-to-digital converter and processed by a microcontroller or a digital signal processor. Finally, the processed signal is displayed in digital form on the screen, representing the numerical value of the optical power.
Functional characteristics
Accurate measurement: The size of the optical power can be directly measured, and the loss and performance of the optical link can be evaluated by comparing the measurement.
Multiple interfaces: Usually equipped with a variety of interface designs, such as FC, SC, ST, etc., to meet various optical fiber connection needs.
Long battery life: The built-in rechargeable lithium battery supports long continuous working time, which is convenient for field use and measurement.
User-friendly interface: User-friendly interface and operation prompts make the measurement process easier and more convenient.
| Model # | U8201 | U8202 | U8204 | U820XH |
| Number of Channels | 1 | 2 | 4 | X |
| Power Range | +10 ~ -65dBm | +25 ~ -50dBm | ||
| Wavelength Range | 850 ~ 1700 nm | |||
| Calibration Wavelength | 850/980/1310/1490/1550/1610 nm | |||
| Application Fiber Type | Standard SM and MM up to 62.5 um core size | |||
|
Absolute Uncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) | |||
|
Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical | |||
| Linearity (power) | ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) | |||
| Return Loss | ＞ 40 dB | |||
| Operation Temperature | 0 ～ +40℃ | |||
| Storage Temperature | -30 ～ +80℃ | |||
| Recalibration Period | 2 years | |||
| Dimensions | 245 mm W, 105 mm H, 320 mm D | |||
| Weight | 2.0 kg | |||
Application field
Single-channel economical optical power meters are widely used in the following fields:
Optical communication: used to measure the performance of optical devices and evaluate the transmission quality of optical fiber links.
Optical cable construction and maintenance: used to measure optical cable connection loss, check continuity, etc.
Optical fiber transmission and sensing: used to monitor the change of optical power during optical fiber transmission and evaluate the performance of optical fiber sensors.
