Ultra-thin PD External Probe For Dual-channel Optical Power Meter

Large Image : Ultra-thin PD External Probe For Dual-channel Optical Power Meter

Product Details:

Brand Name:	YOUCii
Model Number:	U8820B+2*U82024

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiate a price
Packaging Details:	Carton
Delivery Time:	21 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20 pcs+per month

Contact Now

Ultra-thin PD External Probe For Dual-channel Optical Power Meter

Description

Chassis Size:	2U	The External Dimensions Of The PD Terminal:	5 Mm W, 2.5 Mm H, 20 Mm D
Sensor Element:	InGaAs	PD Size:	φ2 Mm
Wavelength Range:	900 ~ 1700 Nm	Power Range:	+10 ~ - 45 DBm
Power Sampling Period（rate）:	1 Ms（1KHz）

Ultra-thin PD External Probe For Dual-channel Optical Power Meter

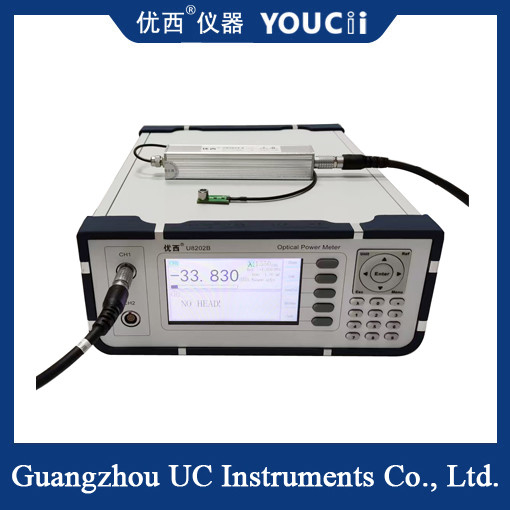

U8820B+2*U82024 dual-channel optical power meter with an external ultra-thin PD (photodiode) probe aims to meet the requirements of high-precision, miniaturization, and multi-scenario optical power measurement.

Model #	U82024
Sensor Element	InGaAs
PD Size	φ2 mm
Wavelength Range	900 ~ 1700 nm
Calibration wavelength	1310 / 1550 / 1650nmSegmented calibration
Power Range	+10 ~ - 45 dBm
Power sampling period(rate)	1 ms(1KHz)
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1650 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1650 nm, 0 ~ -40dBm)
Return Loss	＞ 40 dB
Optical Input Interface	Bare fiber input
Probe front dimension	5.0 mm W x 2.5 mm H x 20.0 mm D
Communication Interface	RS232 / USB
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 Year
Dimensions	5 mm W, 2.5 mm H, 20 mm D
Weight	0.5 kg

Ultra-thin PD probe design
Compact size: Ultra-thin probes (such as those with a thickness of less than 5mm) are easy to integrate into compact devices or narrow Spaces, making them suitable for scenarios like optical fiber communication and optical module testing.

High sensitivity: Utilizing materials such as InGaAs, covering the 800-1700nm band (common communication wavelengths), the sensitivity can reach -45dBm or even lower, making it suitable for low-power signal measurement.

Fast response: The response time of PD probes is typically at the nanosecond level, making them suitable for real-time monitoring of dynamic optical signals such as pulsed lasers.
