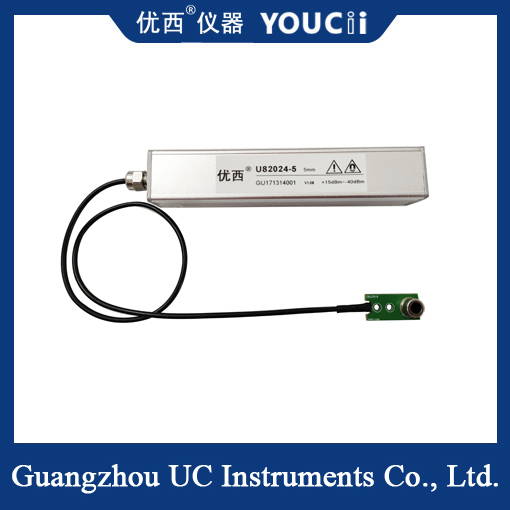

2mm Ultra-thin PD External Optical Power Probe +10 To -45dBm

2mm Ultra-thin PD External Optical Power Probe +10 To -45dBm

Ultra-thin design
The typical probe thickness is only 2.0-4.5 mm (the front-end dimensions of the U82024 model are 5.0mm W×2.5mm H×20.0mm D, but the detection surface thickness is extremely thin), which can be easily integrated into compact optical systems or narrow Spaces.

High-precision detection
The InGaAs detector is adopted, with a wavelength range covering 900-1700nm, meeting the requirements of the communication band (1310/1550nm) and extended bands.
The absolute accuracy reaches ±4% (1200-1650nm), the relative accuracy is less than 0.02dB, and the power linearity is ≤±0.06dB, ensuring precise measurement of both weak and strong light signals.

Flexible interfaces and durability
It provides RS232/USB communication interfaces, facilitating data transmission and system integration.
The operating temperature range is 0-40℃, and the storage temperature range is -30-80℃. It is suitable for harsh environments.
The calibration cycle is 2 years, reducing long-term maintenance costs.
