Product Description:
The Optical Power Meter is designed to work with a variety of connector types, including FC, SC, and ST. This versatility ensures compatibility with different types of fiber optic cables and connectors, making it a versatile tool for various applications. Whether you are working with single-mode or multi-mode fibers, this power meter can handle different connector types with ease.
When it comes to calibration, the Optical Power Meter offers both factory and field calibration options. Factory calibration ensures accurate and reliable measurements out of the box, while field calibration allows for on-site adjustments to meet specific requirements. This flexibility makes the power meter suitable for a wide range of applications and environments.
For data interface connectivity, the Optical Power Meter is equipped with USB and RS232 ports. These interfaces allow for easy data transfer and analysis, enabling users to store and analyze power readings for further troubleshooting and optimization. The data interface capabilities enhance the functionality of the power meter, making it a valuable tool for network maintenance and testing.
When it comes to power range capabilities, the Optical Power Meter offers a wide measurement range to accommodate various power levels. Whether you need to measure high-power signals or low-power signals, this power meter can provide accurate readings across the entire power range. This versatility makes it suitable for a wide range of applications, including network testing, maintenance, and installation.
Features:
- Product Name: Optical Power Meter
- Dimension: 245 mm W, 105 mm H, 320 mm D
- Operating Temperature: 0 to +40℃
- Data Interface: USB/RS232
- Display: LCD
Technical Parameters:
| Model |
U8202 |
| Number of Channels |
2 |
| Power Range |
+10 ~ -65dBm / +5 ~ -70dBm |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Absolute Uncertainty (accuracy) at reference condition
|
± 4% (1200 nm ~ 1610 nm) |
|
Relative Uncertainty (accuracy) at reference condition
|
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss |
＞ 40 dB |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
245 mm W, 105 mm H, 320 mm D |
| Weight |
2.0 kg |
Applications:

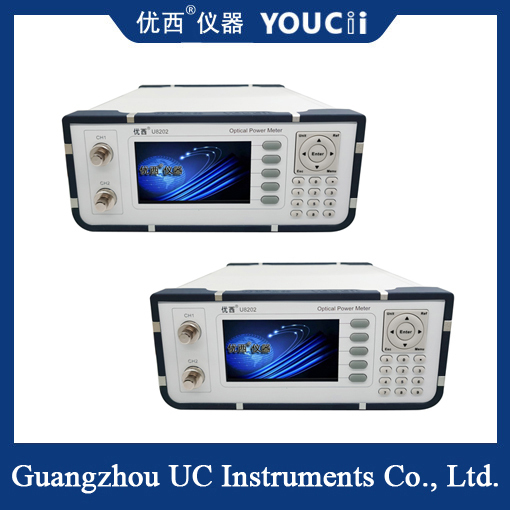

The YOUCii U8202 Optical Power Meter is a versatile and reliable tool designed for various applications across different industries. With its dual-channel capability, it is suitable for a wide range of power measurement scenarios.
One of the key features of the U8202 is its wide power range, which allows for accurate measurements from +5 to -70 dBm. This makes it ideal for tasks that require precise power level monitoring, such as in telecommunications, fiber optics, and network maintenance.
Whether you need to measure power levels in a laboratory setting or out in the field, the U8202 offers flexible calibration options, including factory and field calibration. This ensures that you can maintain the accuracy of your measurements regardless of the environment.
Equipped with FC, SC, and ST connector types, the U8202 offers compatibility with a wide range of optical fibers and devices. This flexibility in connection options allows for seamless integration into various setups and systems, enhancing its usability in different power measurement setups.
Overall, the YOUCii U8202 Optical Power Meter is a powerful and versatile tool that is well-suited for a range of applications and scenarios. Whether you are working with different power ranges, requiring precise wavelength measurements, or need reliable data storage capabilities, the U8202 delivers consistent performance and accuracy to meet your needs.
