Product Description:
Whether for factory setups or in-field applications, the Optical Power Meter offers flexible calibration options to suit different user preferences and requirements. Users can choose between factory calibration or field calibration based on their specific needs, ensuring accurate measurements and consistent performance.
With a broad measurement range of +10 to -65 dBm, this power meter is capable of handling a wide range of optical power levels with precision and accuracy. This extensive measurement range makes it suitable for various optical power measurement tasks across different industries and applications.
The Optical Power Meter features a comprehensive wavelength range, offering versatility and compatibility with a wide range of optical sources and devices. This ensures that users can effectively measure and analyze optical power across different wavelengths, making it a versatile tool for diverse optical applications.

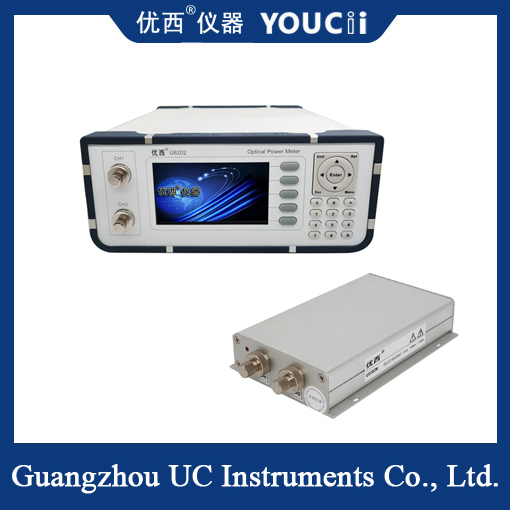

U8202 Fiber Optical Power Meter specification
| Model |
U8202 |
| Number of Channels |
2 |
| Power Range |
+10 ~ -65dBm/ +5 ~ -70dBm |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Absolute Uncertainty (accuracy) at reference condition
|
± 4% (1200 nm ~ 1610 nm) |
|
Relative Uncertainty (accuracy) at reference condition
|
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss |
＞ 40 dB |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
245 mm W, 105 mm H, 320 mm D |
| Weight |
2.0 kg |
Applications:
The YOUCii U8202 Optical Power Meter is a versatile and reliable tool that caters to various application occasions and scenarios due to its high-quality features and specifications.
With a measurement range of 0 to +60 dBm, this power meter is suitable for a wide range of power levels, making it ideal for use in telecommunications, fiber optic testing, and network maintenance.
The U8202 power meter is equipped with a double channel design, allowing users to simultaneously measure and compare optical power levels, enhancing efficiency and productivity in testing setups.
Overall, the U8202 Optical Power Meter is a reliable and efficient tool suitable for a diverse range of scenarios, including wavelength range testing, power range measurements, and optical power level comparisons.
