The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K

The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K
The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K

Large Image :  The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K

Product Details:
Place of Origin: CHINA
Brand Name: YOUCii
Model Number: U8728C
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiate a price
Packaging Details: Carton
Delivery Time: 20 work days
Payment Terms: L/C,D/A,D/P,Western Union,T/T,MoneyGram
Supply Ability: 20 pcs+per month
Contact Now

The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K

Description
Fiber Type: SMFiber Weight: 3Kg
Communication Interface: RS232 / USB / LAN Warranty: One Year
Measuring Range: -75～+5dBm Probe Type: InGaAs
Supply Voltage: 100~240V
Highlight:

high-speed optical power meter

,

100K sampling power meter

,

rapid scanning optical meter

The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K

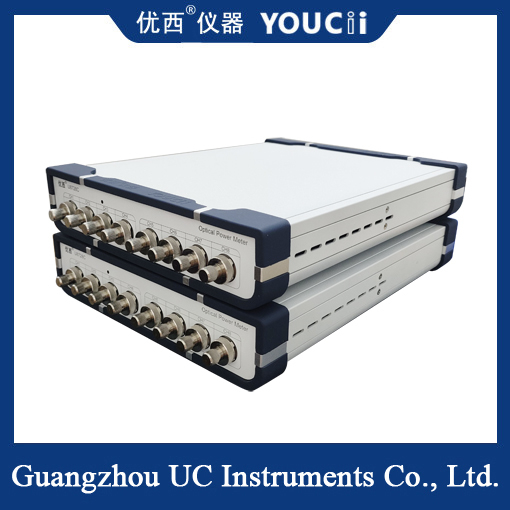

The 8-channel rapid scanning optical power meter is an instrument capable of simultaneously and rapidly measuring the power of 8 optical channels. It features high-speed measurement, data processing and other functions, and is widely used in fields such as optical fiber communication and optical device testing.


U8724/8 technical specification:

Model # U8724/8A U8724/8B U8724/8C
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850/980/1310/1490/1550/1610 nm

1510~1625 nm  Continuous calibration
Power Range +10 ~ -65dBm +25~-55dBm +5~-75dBm
Sampling period 100us (10KHz) 10 us (100KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss ＞40 dB
Communication Interface RS232, USB,Control by PC
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Recalibration Period 2 years
Dimensions 235 mm W, 55mm H, 320 mm D
 Weight 3.0 kg


The 8-channel fast scanning optical power meter significantly enhances the testing efficiency of optical communication devices through multi-port parallel testing, high-speed sampling and dynamic range optimization, and is particularly suitable for scenarios such as high-density wavelength division multiplexing (DWDM) and optical splitters (PLC).


The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K 0

Tag:

Optical Power Meter 850nm,

4 Channel light source power meter,

light source power meter RS232
