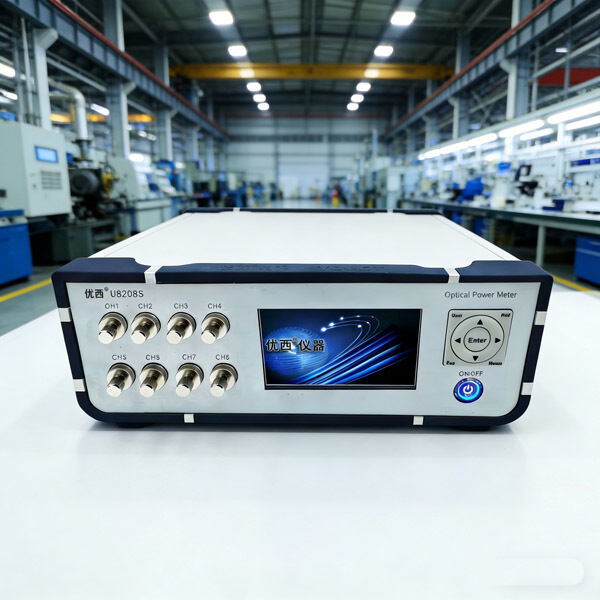

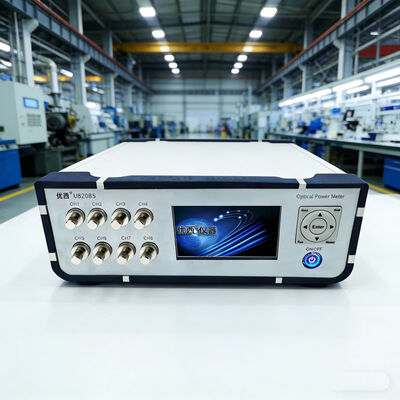

Product Description:
The optical power meter is a must-have tool specifically designed for professionals in the optical fiber industry, capable of accurately and reliably measuring the optical power level. This device is equipped with a clear and easily readable LCD display, ensuring that users can conveniently monitor power readings in various working environments.
One of the key features of this optical power meter is its compatibility with multiple connector types. It supports FC, SC, and LC connectors, suitable for various optical cables and systems. This flexibility enables users to test different types of networks, thereby saving time and resources during the testing process.
The device covers a wide wavelength range and can precisely measure various wavelengths commonly used in optical fiber communication. This feature is crucial for professionals working in various optical system applications, as it ensures that regardless of the specific wavelength used, accurate power readings can be obtained. Coupled with its wide power range capability, this optical power meter can detect both high and low optical power levels, making it suitable for various applications ranging from network installation to maintenance and troubleshooting.
Technical specification
| Model # |
U8208S |
| Number of Channels |
8 |
| Power Range |
+20 ~ -60dBm |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Absolute
Uncertainty (accuracy) at reference condition
|
± 4% (1200 nm ~ 1610 nm) |
|
Relative
Uncertainty (accuracy) at reference condition
|
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss |
＞ 40 dB |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
340 mm W, 105 mm H, 320 mm D |
| Weight |
3.0 kg |
Applications:
The YOUCii U8208S optical power meter is a powerful tool that is suitable for various application scenarios and environments in the field of fiber network testing and maintenance. With its dual-channel design, this advanced optical power meter enables technicians and engineers to precisely measure the optical power level within a wide range from +20 to -60 decibels milliwatts, thereby ensuring the accuracy of diagnosing and evaluating the performance of fiber systems.
One of the main application scenarios of the YOUCii U8208S is the installation and maintenance of telecommunications networks. Fiber technicians rely on this device to detect signal strength and quality, enabling them to identify problems such as excessive signal loss or poor return loss that may reduce network performance. Accurate measurement of return loss helps to identify reflections and faults in the fiber link, which is crucial for maintaining optimal signal integrity.
In summary, the YOUCii U8208S optical power meter is suitable for various scenarios, including on-site installation, daily maintenance, network fault troubleshooting, and laboratory testing. Its wide measurement range, return loss measurement function, flexible calibration methods, compatibility with multiple connectors, and powerful data interface options make it a reliable and indispensable tool for professionals working in fiber optic networks.
