Product Description:
The optical power meter is an outstanding and highly precise instrument specifically designed for measuring the optical power in fiber networks. Its measurement range is from +20 to -60 decibels milliwatts and is suitable for various applications, ranging from basic fiber testing to advanced network diagnostics. Its wide power range ensures compatibility with most light sources, allowing technicians and engineers to obtain accurate and consistent readings in different environments.
One of the prominent features of this optical power meter is its clear and easy-to-read liquid crystal display. The high-contrast liquid crystal screen can display the measurement data in real time, enabling users to easily monitor the optical power level without the need for additional equipment. This user-friendly interface enhances operational efficiency, allowing users to focus on their work without being disturbed or hindered by complex situations.
This optical power meter supports a wavelength range that covers the most commonly used wavelengths in fiber optic communication, ensuring its universality across different network configurations. Whether using single-mode or multi-mode optical fibers, users can rely on this device to provide accurate measurement results within the required wavelength range.
Technical specification
| Model # |
U8208S |
| Number of Channels |
8 |
| Power Range |
+20 ~ -60dBm |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Absolute
Uncertainty (accuracy) at reference condition
|
± 4% (1200 nm ~ 1610 nm) |
|
Relative
Uncertainty (accuracy) at reference condition
|
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss |
＞ 40 dB |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
340 mm W, 105 mm H, 320 mm D |
| Weight |
3.0 kg |
Applications:

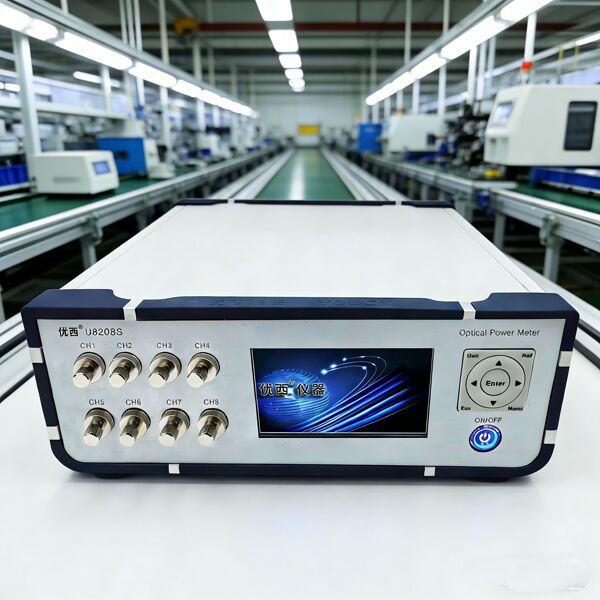

The YOUCii U8208S optical power meter is an essential tool specifically designed for accurately measuring the optical power in fiber networks. With its dual-channel feature, this device can simultaneously test 8 optical signals, significantly enhancing the efficiency of technicians and engineers.
This optical power meter is suitable for various application scenarios and environments. It is widely used in the telecommunications field for testing and maintenance of optical cables to ensure that signal strength and quality are at their optimal levels. The device supports a wide range of wavelengths and is applicable to different optical fiber systems, including single-mode and multi-mode fibers. Its measurement range is from +20 to -60 decibels milliwatts, capable of measuring very low to relatively high levels of optical power, which is crucial for comprehensive network diagnosis and fault detection.
