Product Description:
The Optical Power Meter is a highly precise and reliable instrument designed for measuring optical power with exceptional accuracy and stability. Built to meet the rigorous demands of modern optical testing and maintenance, this device offers an uncertainty (accuracy) at reference conditions of less than 0.02 dB, which ensures highly consistent and dependable readings for a wide range of applications. Whether you are working in telecommunications, fiber optic installation, or laboratory testing, this optical power meter provides the accuracy and performance needed to achieve optimal results.

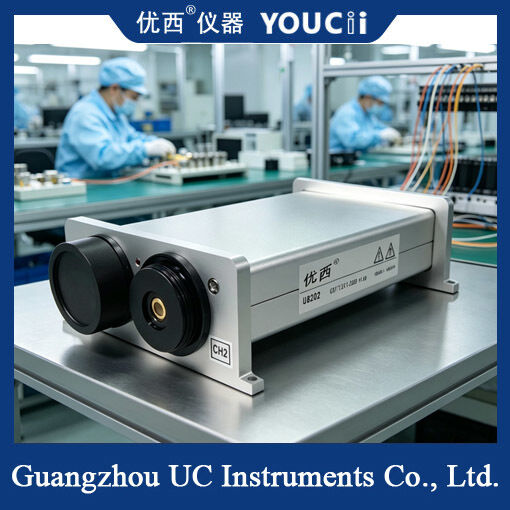

One of the standout features of this optical power meter is its dual-channel design, allowing simultaneous measurement on two separate optical paths. This capability enhances efficiency and convenience, making it ideal for complex testing environments where multiple signals need to be monitored concurrently. The device supports a broad wavelength range, enabling it to accurately measure power levels across various fiber optic systems. This wide wavelength range coverage ensures compatibility with different types of optical fibers and light sources, from standard single-mode fibers to specialized equipment used in advanced research and development.
| Model # |
U8201M |
U8202M |
U8201MH |
U8202MH |
| Number of Channels |
1 |
2 |
1 |
2 |
| Power Range |
+9 ~ -66dBm |
+25 ~ -50dBm |
| Wavelength Range |
850 ~ 1700 nm |
|
Power sampling period(rate)
|
1ms(1KHz) |
| Calibration Wavelength |
850/980/1310/1490/1550/1610 nm |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
|
Absolute
Uncertainty (accuracy) at reference condition
|
± 4% (1200 nm ~ 1610 nm, +5~ -50dBm) |
± 4% (1200 nm ~ 1610 nm, +20~ -35dBm) |
|
Relative
Uncertainty (accuracy) at reference condition
|
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, +5~ -50dBm) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, +20~ -35dBm) |
| Return Loss |
＞ 40 dB |
| Communication Interface |
RS232 |
| Sampling Data Storage |
Supports continuous data acquisition and storage for up to 2 hours online, with power curve plotting |
| Power Supply |
DC5V3A,Equipped with a 100~240V AC power adapter |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
100 mm W, 30 mm H, 165 mm D |
| Weight |
1.0 kg |
Applications:
The YOUCii U8202M Dual-channel Optical Power Meter is a highly versatile and reliable instrument designed to meet the demanding needs of professionals working with fiber optic networks. Its dual-channel optical power meter module allows simultaneous measurement, making it ideal for applications where efficiency and accuracy are paramount. With a power range that accommodates both standard single-mode (SM) and multi-mode (MM) fibers up to 62.5 µm core size, this device offers broad compatibility across various fiber optic systems.
The U8202M is calibrated for multiple wavelengths, covering a wide wavelength range including 850 nm, 980 nm, 1310 nm, 1490 nm, 1550 nm, and 1610 nm. This extensive wavelength range ensures precise measurement in diverse network environments, whether in data centers, telecommunications, or CATV applications. The ability to operate effectively within these wavelengths makes the YOUCii U8202M an essential tool for technicians performing installation, maintenance, and troubleshooting of fiber optic cables.
